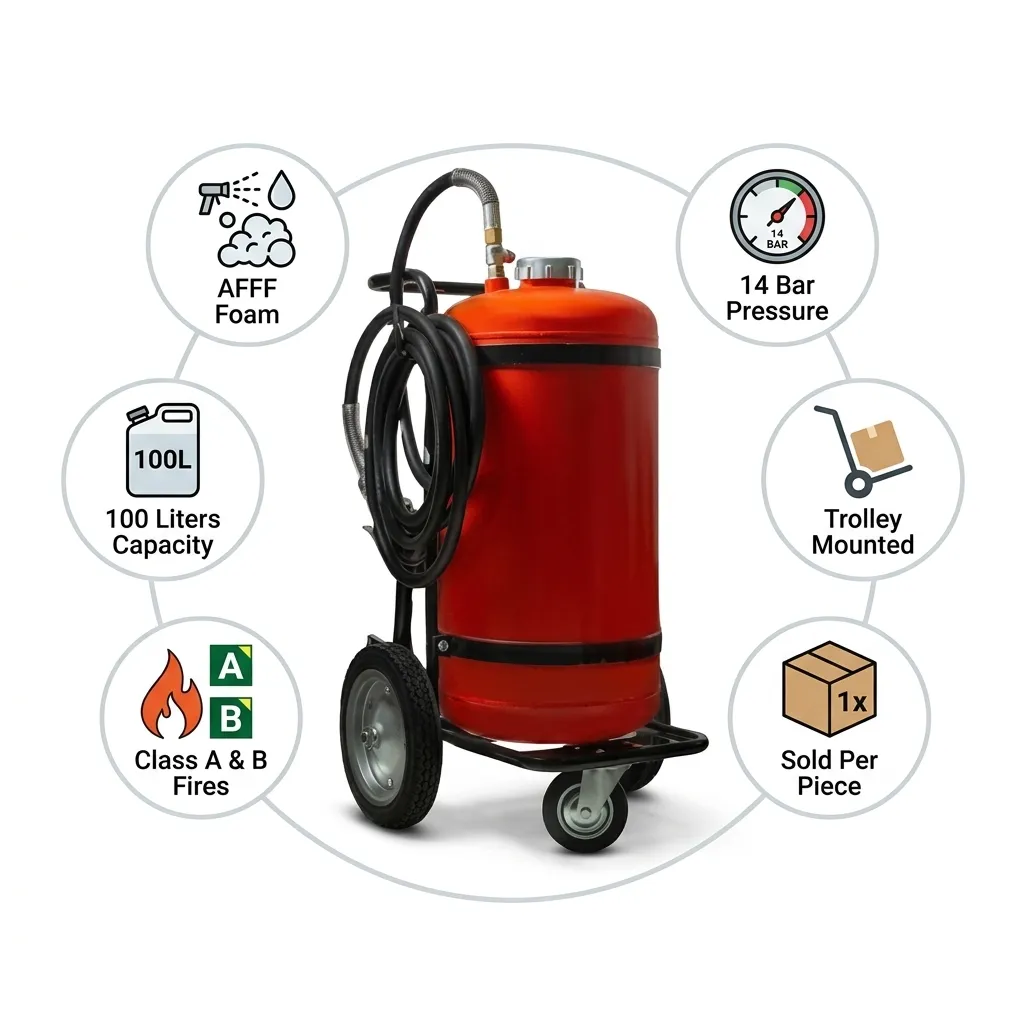

Naffco NTFC 100X 100 Liters AFFF Foam Type Fire Extinguisher With Trolley
0.0 (0)Rated 0.0 out of 5
SKU: VZ-PPE-FIRE-044
Price on Request
Naffco NTFC 100X 100 Liters AFFF Foam Type Fire Extinguisher with Trolley. Trolley-mounted external cartridge operated type. Propellant: CO2. Fire rating: IVB. Working pressure: 14 bar. Max working pressure: 18.5 bar. Test pressure: 32 bar. Total weight: 189 kg. Discharge range: 8-10 m, duration: 110-120 seconds. Hose: 16 mm x 7 m. Operating temperature: +5°C to +60°C. Kitemark/LPCB certified to BS EN 1866-1. Price mentioned per piece.
Available sizes
100 Liters
Available colors
Red
1
Quality inspected
Fast nationwide delivery
7-day return request (terms apply)
NAFFCO Mobile external cartridge operated foam fire extinguishers are characterized by their high performance and simple method operation. The extinguisher contains high performance extinguishing agent 6% AFFF foam and thus has achieved the highest fire rating. NAFFCO Mobile Foam extinguishers are most suitable for fires involving flammable liquids and freely burning materials such as paper, cloth and wood. Effective for Class A & Class B fires.
Key Features: The fire extinguishers are designed to comply with all the specification requirements of BS EN 1866-1; Kitemark and LPCB approved for different capacity extinguishers; Cylinders compliance to council directive 2014/68/EU (PED), Certified by BSI (2797); Agent used is AFFF (6%) Synthetic Aqueous film forming foam for effective fire extinguishment; Incorporated with high pressure CE approved CO2 cylinder as propelling agent; Ready for instant use and simple to operate; Cart and cylinder are made of rugged steel and welded to meet extreme use conditions; Easily transportable; Externally coated by Electrostatic powder painting after shot blasting ensures maximum corrosion resistance; Internally coated by electrostatic block powder using resin for corrosion resistance; Large Brass, nickel chrome plated cap for ease during refilling the agent; Cylinder assemblies are designed for easy maintenance by mounting it separately on steel frame and thus can be separated by just removing the steel clamps.
Industrial Uses / Applications: Fuel / petrol stations; Chemical / solvent storage areas; Warehouses with flammable liquids; Car workshops, auto spray booths; Aircraft hangars, garages; Any environment with risk of liquid fuel fires.
Safety Information
AFFF foam fire extinguisher for Class A & B fires. Inspect pressure gauge before each use. Ensure safety pin and seal are intact. Store in a cool, dry place. Replace or refill after use. Do not use on electrical fires or flammable gas fires.
Product Data Sheet
Material
Hot Rolled Steel Plate (Cylinder), Rugged Steel (Trolley)
Brand
NAFFCO
SKU
VZ-PPE-FIRE-044
Model
NTFC 100X
Type
AFFF Foam Type Fire Extinguisher with Trolley
Cylinder Material
Hot Rolled Steel Plate
Capacity
100 Liters
Fire Rating
IVB
Propellant
CO2
Working Pressure
14 Bar
Test Pressure
32 Bar
Maximum Working Pressure
18.5 Bar
Total Weight
189 kg
Range of Discharge
8-10 m
Duration of Discharge
110-120 Seconds
Hose Length
16 mm x 7 m
Operating Temperature
+5°C to +60°C
Height x Width
1100 x 625 mm
Certifications
Kitemark/LPCB BS EN 1866-1, BSI PED
Pricing
Per Piece
Application
Fuel / Petrol Stations, Chemical / Solvent Storage Areas, Warehouses with Flammable Liquids, Car Workshops, Auto Spray Booths, Aircraft Hangars, Garages
AFO 1.3 kg Fire Extinguisher Ball. Automatic, throwable, dry powder fire suppression device. Self-activates when exposed to flame or high heat. 360° powder dispersion. Activation time: 3-5 seconds. Alarm sound: 120 dB. Coverage area: 8-10 m2. Diameter: 147 mm. Life span: 5 years. Price mentioned per piece.

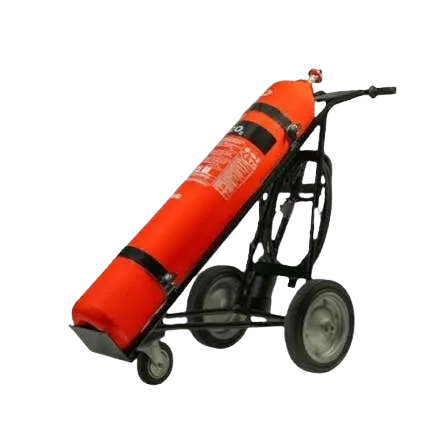

Naffco NTC30X 30 Kg Carbon Dioxide (CO2) Fire Extinguisher with Trolley. For Class B, C & E fires. Working pressure: 55-60 bar @ 25°C. Max operating pressure: 174 bar @ 60°C. Test pressure: 250 bar. Total weight: 125 kg. Discharge range: 6-8 m, duration: 42-45 seconds. Hose: Bore ⅜" x 5 m. Operating temperature: -20°C to +60°C. Kitemark approved. Price mentioned per piece.
