Mobiak 30 Kg Carbon Dioxide CO2 Trolley Fire Extinguisher
0.0 (0)Rated 0.0 out of 5
SKU: VZ-PPE-FIRE-055
Price on Request
Mobiak 30 Kg Carbon Dioxide (CO2) Trolley Fire Extinguisher. Trolley-mounted, high-capacity CO2 unit. For Class B (flammable liquids) and electrical fires. Operating temperature: -20°C to +60°C. Max allowable pressure: 192 bar. Test pressure: 300 bar. Cylinder material: 34CrMo4. Valve material: HPb59-1. Approx. gross weight: 80 kg. 5 m EPDM discharge hose. Price mentioned per piece.
Available sizes
30 KG
Available colors
Red
1
Quality inspected
Fast nationwide delivery
7-day return request (terms apply)

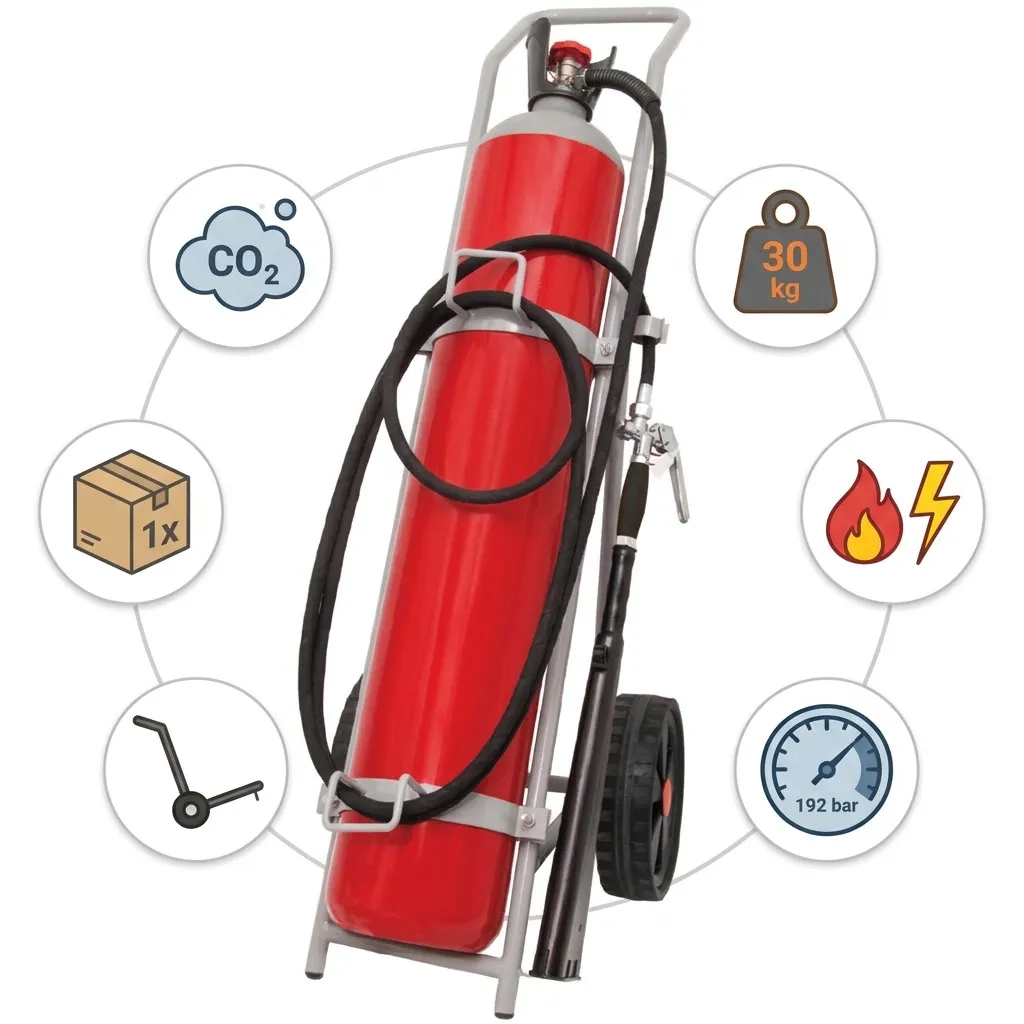

The Mobiak 30 Kg CO₂ Trolley Fire Extinguisher is a mobile, high-capacity CO₂ suppression unit designed to fight Class B (flammable liquids) and electrical fire hazards. It uses a welded 40 L CO₂ cylinder, mounted on a heavy-duty trolley with a 5 m EPDM discharge hose (rated WP 155 bar), a plastic handle, flow control valve, and a valve protection handle. The design enables safe operation from a distance and portability over industrial terrain.
Key Features: Large CO₂ capacity (30 kg) — supports long discharge and high suppression power in large or high-risk zones; 40 L welded cylinder — robust build for durability and safety under high pressure; Trolley + maneuverability — heavy-duty carriage and wheels to move the extinguisher easily across factory floors or site areas; Valve protection & ergonomic handle — protects the valve assembly and aids in handling under stress; Clean agent (CO₂) — leaves no residue, safe for electrical / sensitive equipment areas.
Industrial Uses / Applications: Electrical substations, switchgear rooms; Industrial plants with solvent / liquid fire risk; Data centers, telecom rooms; Laboratories with chemical and electrical hazards; Workshops, vehicle maintenance bays; Large factories and warehouses with high fire loads.
Safety Information
CO2 fire extinguisher for Class B and electrical fires. Inspect before each use. Ensure safety pin and seal are intact. Store in a cool, dry place. Replace or refill after use. Do not use in confined spaces without ventilation (asphyxiation risk).
Product Data Sheet
Material
34CrMo4 (Cylinder), HPb59-1 (Valve), EPDM (Hose)
Brand
Mobiak
SKU
VZ-PPE-FIRE-055
Model
30 KG CO2 Trolley
Type
Carbon Dioxide (CO2) Trolley Fire Extinguisher
Capacity
30 KG
Extinguishing Agent
CO2
Operating Temperature
-20 to +60 °C
Max Allowable Pressure
192 bar
Test Pressure
300 bar
Volume of Equipment
40 L
Cylinder Height
1230±30 mm
Cylinder Diameter
229±2.29 mm
Cylinder Neck Thread
25E
Valve Material
HPb59-1
Cylinder Material
34CrMo4
Safety Valve
250-275 bar
Approx. Gross Weight
80 kg
Approx. Dimensions
1400 x 500 mm
Paint Finish RAL
3000
Hose Material
EPDM (5 m)
Pricing
Per Piece
Application
Electrical Substations, Switchgear Rooms, Industrial Plants, Data Centers, Telecom Rooms, Laboratories, Workshops, Vehicle Maintenance Bays, Large Factories and Warehouses
