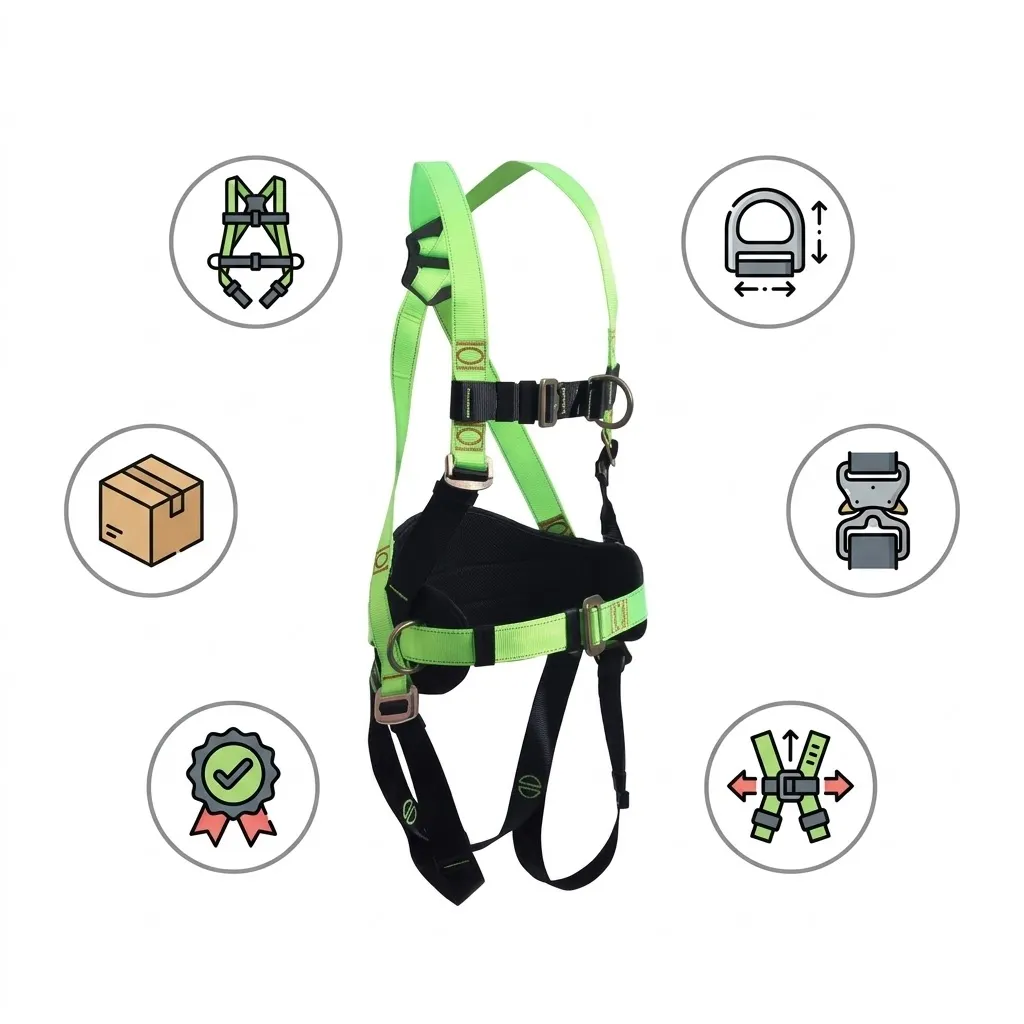

Toho MH109 4D Ring Full Body Safety Harness for Fall Arrest and Climbing with Steel Cobra Buckles
0.0 (0)Rated 0.0 out of 5
SKU: VZ-PPE-FALL-005
Rs. 12,800
Toho MH109 4D Ring Full Body Safety Harness for Fall Arrest and Climbing. 100% polyester webbing, 45 mm width. One dorsal + one chest + two lateral D-rings (4D). Steel cobra buckles. 6-point adjustable harness. Breaking strength ≧25 kN. Conforms to EN 361 & EN 358. Price mentioned per piece.
Available sizes
Universal
Available colors
Green
1
Quality inspected
Fast nationwide delivery
7-day return request (terms apply)
The Toho MH109 4D-Ring Full Body Safety Harness with side-release Cobra-style buckle is built for multiple height-safety roles: fall arrest, work positioning, and climbing / tower work. It uses robust 100% polyester webbing (≈ 45 mm wide) with high breaking strengths for both webbing and hardware [citation:2].
The harness includes multiple attachment points: dorsal D-ring (for fall arrest), two lateral/waist D-rings (for work positioning), and one sternal/chest D-ring (for climbing / ladder access / rescue) [citation:2]. It has full adjustability at six points (chest, shoulder, waist, legs) to fit various users, along with comfort features like a seat strap and lumbar pad [citation:2].
Key Features: Material & Build Strength — 100% polyester webbing; webbing width ~45 mm; breaking load ≧25 kN; hardware (rings and buckles) forged/steel, treated, with zinc plating [citation:2]; Attachment Points / D-Ring Configuration — Includes a dorsal D-ring (fall arrest), two waist (lateral) D-rings (work positioning), and one sternal (chest) D-ring (climbing / ladder access / rescue) [citation:2]; Cobra-Style Quick-Release Buckle — Patented side-release Cobra locking mechanism — both tabs must be pressed simultaneously to open; cannot release under load; minimum breaking strength ~18 kN in loop configuration [citation:2]; Adjustability / Fit — Adjustable at six points: chest, shoulder, waist, legs [citation:2]; Comfort & Ergonomics — Includes a seat strap and lumbar pad to reduce pressure and discomfort during extended wear or when suspended [citation:2]; Standards & Certification — Complies with EN 361 (full-body harness for fall protection) and EN 358 (work positioning/restraint) [citation:2]; Load & Weight Capacity — Built to support user weight up to 140 kg; total harness weight ~1.7 kg [citation:2].
Industrial Uses / Applications: Tower climbing / telecommunications maintenance; Scaffold work / façade / construction at height; Window washing / high-rise building maintenance; Rescue / emergency access tasks; Industrial plant maintenance (overhead work); Utility / power line work [citation:2].
Safety Information
4D full body safety harness for fall arrest, work positioning, and climbing. Must use with energy absorbing lanyard. Maximum shock after fall must be less than 6 kN. Tested up to 140 kg (user + equipment). Inspect before each use for damage. Replace if damaged, worn, or after a fall. Store in a cool, dry place.
Product Data Sheet
Material
100% Polyester Webbing with Steel Hardware and Cobra Buckles
Brand
Toho
SKU
VZ-PPE-FALL-005
Model
MH109
Type
4D Ring Full Body Safety Harness for Fall Arrest and Climbing
Webbing
100% Polyester, 45 mm Width
Breaking Strength
≧25 kN
D-Rings
One Dorsal D-Ring (Fall Arrest), One Chest D-Ring (Climbing/Rescue), Two Lateral D-Rings (Work Positioning)
Buckles
Steel Cobra Buckles, Side-Release, Cannot Release Under Load, Min Breaking Strength ~18 kN
Adjustability
6-Point Adjustable (Chest, Shoulder, Waist, Legs)
Comfort
Seat Strap, Lumbar Pad
Size
Universal
Weight
~1.7 kg
Load Capacity
Up to 140 kg
Standards
EN 361 (Fall Arrest), EN 358 (Work Positioning)
Packaging
Sold Per Piece
Pricing
Per Piece
Application
Tower Climbing, Telecom Maintenance, Scaffold Work, Façade, Construction at Height, Window Washing, High-Rise Building Maintenance, Rescue, Industrial Plant Maintenance, Utility/Power Line Work
