Toho MH105 3D Safety Harness for Fall Arrest and Work Positioning
0.0 (0)Rated 0.0 out of 5
SKU: VZ-PPE-FALL-002
Price on Request
Toho MH105 3D Safety Harness for Fall Arrest and Work Positioning. 100% polyester webbing, 45 mm width. One dorsal + two sternal D-rings for 3D ring setup. 5-point adjustable harness. Universal size, ~0.95 kg. Conforms to EN 361 & EN 358. Price mentioned per piece. Contact for quote.
Available sizes
Universal
Available colors
Green
1
Quality inspected
Fast nationwide delivery
7-day return request (terms apply)

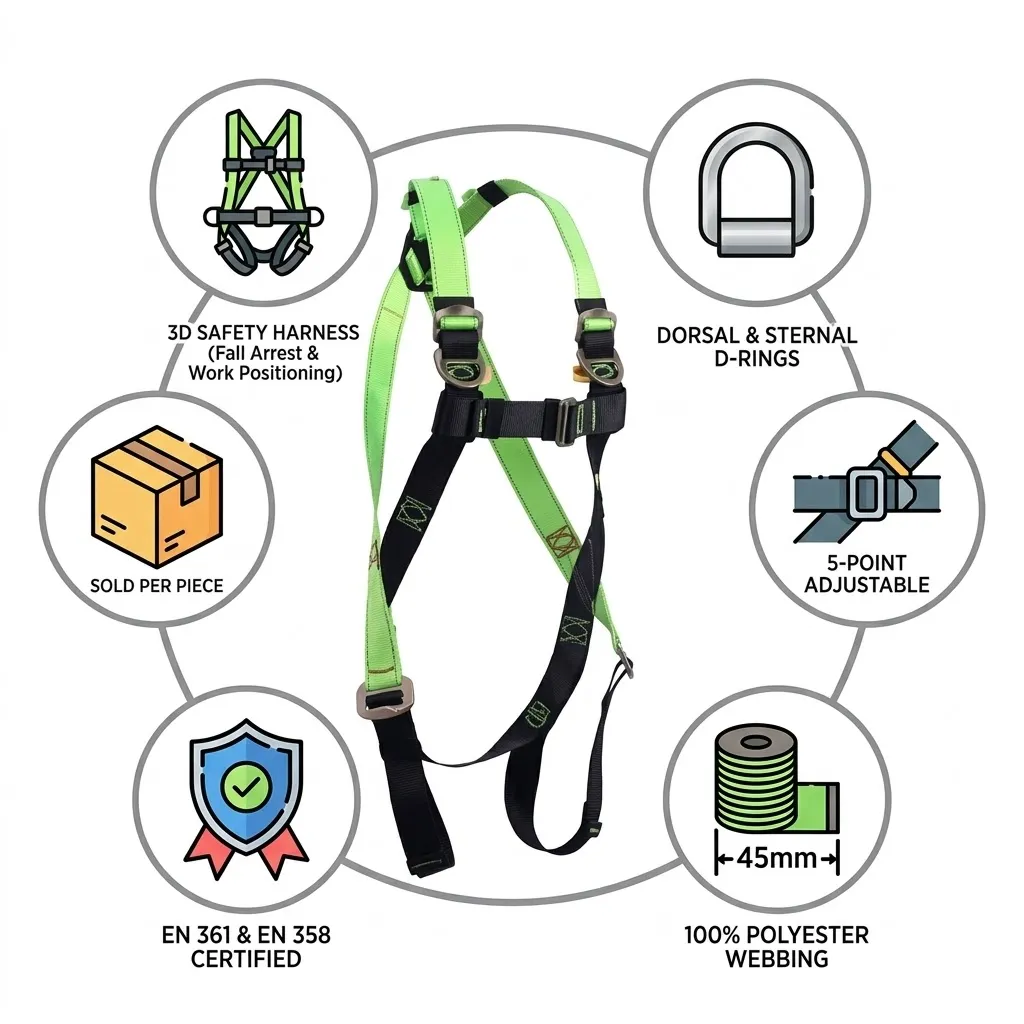

The Toho MH 105 3D Full Body Safety Harness is made with high-strength polyester webbing. It features a 3-dimensional ring setup: one dorsal D-ring for fall arrest plus two sternal D-rings for work positioning tasks. The harness includes multiple adjustment points to fit various body sizes, and is tested up to 140 kg (user + equipment) when used with a suitable energy-absorbing lanyard. It meets the EN 361 and EN 358 safety standards.
Key Features: Material & Construction — 100% polyester webbing, approx. 45 mm webbing stretch, rugged build; Strength Rating — Breaking load > 23 kN for all webbing & hardware; Attachments / D-Rings — One dorsal D-ring for fall arrest; Two sternal D-rings used for work positioning; Adjustability & Fit — 5 fully adjustable points: chest, shoulder, legs etc., to ensure secure fitting across users; Weight & Size — Universal size; weight approx. 0.95 kg; Standards / Certification — Conforms to EN 361 (fall arrest) & EN 358 (work positioning); Usage Capacity — Tested up to 140 kg (user + equipment) with appropriate lanyard to keep shock load under safe limit (<6 kN).
Industrial Uses: Construction & scaffolding work; Tower / mast climbing / telecom maintenance; Roof and façade maintenance; Industrial plant overhead maintenance; Utility work (electricity, telecom) at height.
Safety Information
3D full body safety harness for fall arrest and work positioning. Must use with energy absorbing lanyard. Maximum shock after fall must be less than 6 kN. Tested up to 140 kg (user + equipment). Inspect before each use for damage. Replace if damaged, worn, or after a fall. Store in a cool, dry place.
Product Data Sheet
Material
100% Polyester Webbing with Steel Hardware
Brand
Toho
SKU
VZ-PPE-FALL-002
Model
MH105
Type
3D Safety Harness for Fall Arrest and Work Positioning
Webbing
100% Polyester, 45 mm Width
D-Rings
One Dorsal D-Ring (Fall Arrest), Two Sternal D-Rings (Work Positioning)
Adjustability
5-Point Adjustable (Chest, Shoulder, Legs, etc.)
Breaking Load
>23 kN for All Webbing & Hardware
Size
Universal
Weight
~0.95 kg
Standards
EN 361 (Fall Arrest), EN 358 (Work Positioning)
Usage Capacity
Tested Up to 140 kg (User + Equipment), Max Shock <6 kN
Packaging
Sold Per Piece
Pricing
Per Piece (Contact for Quote)
Application
Construction, Scaffolding, Tower/Mast Climbing, Telecom Maintenance, Roof & Façade Maintenance, Industrial Plant Overhead Maintenance, Utility Work at Height
