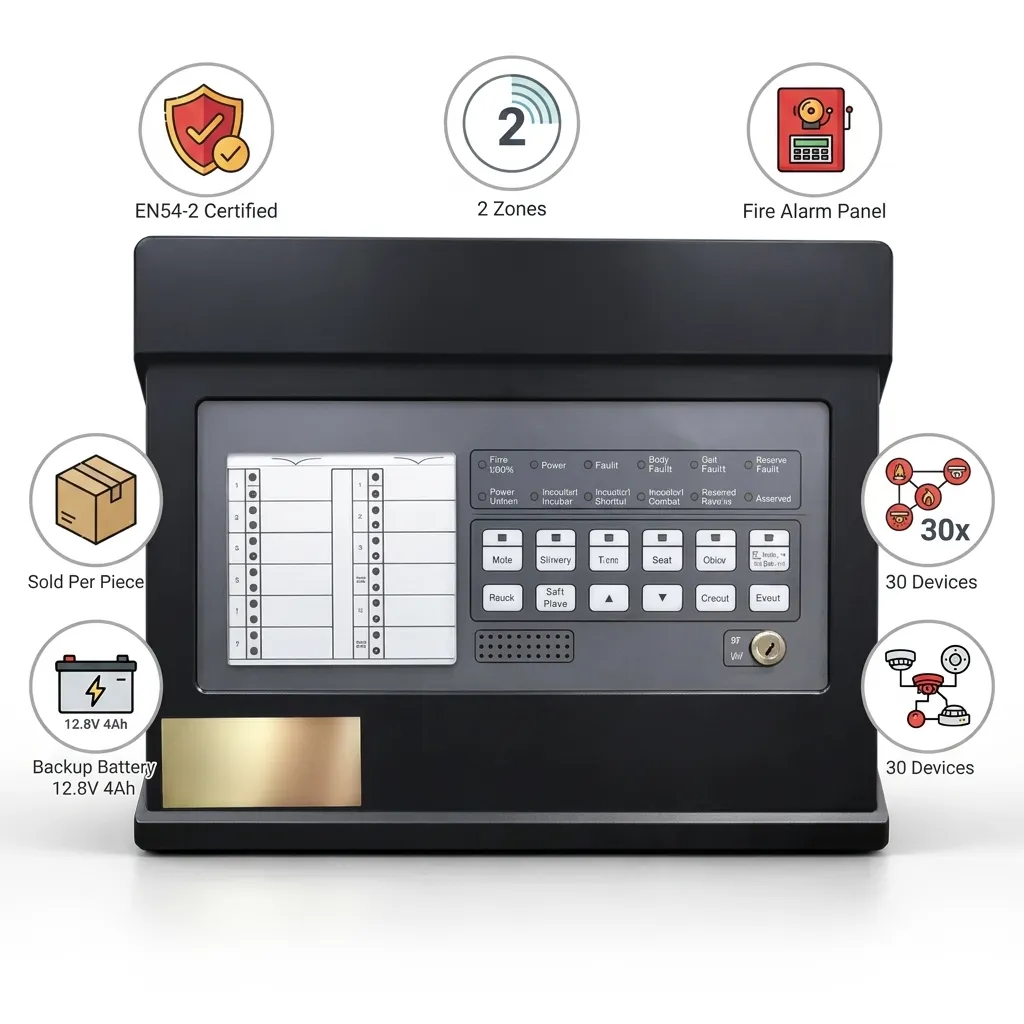

TNA TXC7002 2 Zone Conventional Fire Alarm Control Panel. Input voltage: AC 220V (187V-242V), 50Hz. Main circuit current: 2.8A. Backup battery: 12.8V, 4Ah. Zone device capacity: 30 devices per zone. Alarm bell output current: 0.5A per zone. Dimensions: 311 x 60 x 251 mm. Weight: 1.5 kg. IP30 rated. Price mentioned per piece.
Available sizes
Available colors
The TXC7002 is a conventional fire alarm control panel designed for smaller-scale fire detection systems. It supports two detection zones and is built for reliable operation in commercial applications. The unit includes a mains power supply with battery backup, zone inputs, alarm outputs and fault relays. Key Features: Supports 2 fire alarm zones (model TXC7002) with capacity for approximately 30 devices per zone; Alarm bell / sounder output current: 0.5 A per zone; Auxiliary power outputs: 2 outputs each rated 0.5 A for additional devices; Size: 311 mm × 60 mm × 251 mm (L × W × H), weight ~1.5 kg; Operating environment: 0°C to +40°C, humidity ≤95% RH (non-condensing); Ingress protection: IP30 for indoor installation. Industrial Uses / Applications: Small offices and retail shops; Clinics, small schools or educational units; Residential apartments with basic fire detection; Small warehouses or service areas.
Safety Information
Fire alarm control panel for indoor use. Install as per manufacturer instructions and local fire safety codes. Ensure proper wiring and backup battery connection. Test the system regularly. Do not open the enclosure while powered. Replace backup battery as recommended.
EN54-2 (TNA panels series)
Verified
TNA TX7100 Optical Smoke Head for Addressable Fire Alarm Systems. EN54-7 certified, LPCB & CE-CPR approved. Operating voltage: 24V DC (16-28V DC). Standby current: 0.6 mA, Alarm current: 4 mA. Address range: 1-254. Dimensions: 99.7 mm x 57 mm. Weight: 145 g (with base). Operating temperature: -10°C to +50°C. Price mentioned per piece.
TNA TX7004 Intelligent Addressable Fire Alarm Control Panel. Certified to EN54-2 & EN54-4. Supports up to 3,000 programmable zones, 1,000 sounder groups, and networking up to 512 panels. Large touch-screen LCD display. Input voltage: 230VAC ±10%-15%, 50Hz. Dimensions: 530 x 490 x 135 mm. Weight: 16.7 kg. Price mentioned per piece.
TNA TX7002 Intelligent Addressable Fire Alarm Control Panel. Compliant with EN 54-2 & EN 54-4. Supports up to 2 loops, each with up to 254 addressable devices. Network capability up to 512 panels. Touch-screen interface. Input voltage: 230VAC +10%-15%. Dimensions: 460 x 440 x 165 mm. Weight: 9.40 kg. Price mentioned per piece.
TNA TXC7012 12 Zone Conventional Fire Alarm Control Panel. EN54-2 & EN54-4 certified. Input voltage: AC 220V (187V-242V), 50Hz. Main circuit current: 2.8A. Backup battery: 12.8V, 4Ah. Zone device capacity: 30 devices per zone. Alarm bell output current: 0.5A per zone. Dimensions: 311 x 60 x 251 mm. Weight: 1.5 kg. IP30 rated. Price mentioned per piece.
