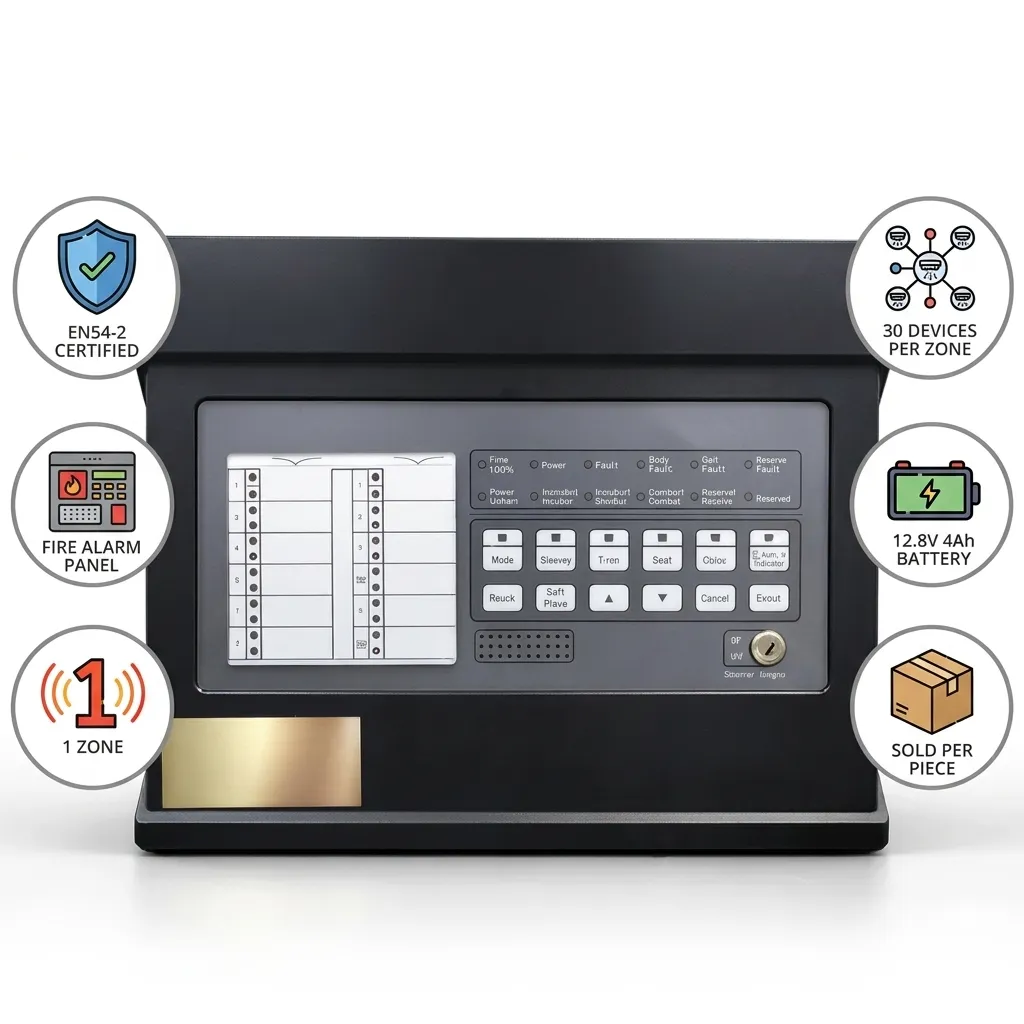

TNA TXC7001 1 Zone Conventional Fire Alarm Control Panel. EN54-2 certified. Input voltage: AC 220V (187V-242V), 50Hz. Main circuit current: 2.8A. Backup battery: 12.8V, 4Ah. Zone device capacity: 30 devices per zone. Alarm bell output current: 0.5A per zone. Dimensions: 311 x 60 x 251 mm. Weight: 1.5 kg. IP30 rated. Price mentioned per piece.
Available sizes
Available colors
The TXC7001 panel is part of TNA's TXC7000 series of conventional fire alarm control panels that comply with the EN54-2 standard. It is engineered for small to medium-sized buildings and supports integration with conventional fire detection devices such as detectors, manual call points and sounders. Key Features: EN54-2 certified compliance for reliability and regulatory adherence; Supports conventional detectors (e.g., TXC7101, TXC7111), manual call-points (e.g., TXC7141) and sounder/strobe units (e.g., TXC7301) in a flexible wiring architecture; Built-in mains power supply input and provisions for backup battery support, ensuring continuous operation during a mains failure; Zone capacity: up to 30 devices per zone; Compact metal enclosure, IP30 rated for indoor use. Industrial Uses / Applications: Small offices and retail premises; Schools, clinics or small educational facilities; Residential apartment buildings with conventional detection needs; Storage areas or warehouses with minimal zone requirements.
Safety Information
Fire alarm control panel for indoor use. Install as per manufacturer instructions and local fire safety codes. Ensure proper wiring and backup battery connection. Test the system regularly. Do not open the enclosure while powered. Replace backup battery as recommended.
EN54-2
Verified
TNA TX7100 Optical Smoke Head for Addressable Fire Alarm Systems. EN54-7 certified, LPCB & CE-CPR approved. Operating voltage: 24V DC (16-28V DC). Standby current: 0.6 mA, Alarm current: 4 mA. Address range: 1-254. Dimensions: 99.7 mm x 57 mm. Weight: 145 g (with base). Operating temperature: -10°C to +50°C. Price mentioned per piece.
TNA TX7004 Intelligent Addressable Fire Alarm Control Panel. Certified to EN54-2 & EN54-4. Supports up to 3,000 programmable zones, 1,000 sounder groups, and networking up to 512 panels. Large touch-screen LCD display. Input voltage: 230VAC ±10%-15%, 50Hz. Dimensions: 530 x 490 x 135 mm. Weight: 16.7 kg. Price mentioned per piece.
TNA TX7002 Intelligent Addressable Fire Alarm Control Panel. Compliant with EN 54-2 & EN 54-4. Supports up to 2 loops, each with up to 254 addressable devices. Network capability up to 512 panels. Touch-screen interface. Input voltage: 230VAC +10%-15%. Dimensions: 460 x 440 x 165 mm. Weight: 9.40 kg. Price mentioned per piece.
TNA TXC7012 12 Zone Conventional Fire Alarm Control Panel. EN54-2 & EN54-4 certified. Input voltage: AC 220V (187V-242V), 50Hz. Main circuit current: 2.8A. Backup battery: 12.8V, 4Ah. Zone device capacity: 30 devices per zone. Alarm bell output current: 0.5A per zone. Dimensions: 311 x 60 x 251 mm. Weight: 1.5 kg. IP30 rated. Price mentioned per piece.
