Honeywell IN20817 110 kV FRP Static Discharge Rod High Voltage Electrical Safety Tool

Honeywell IN20817 110 kV FRP Static Discharge Rod High Voltage Electrical Safety Tool
Honeywell logo
ManufacturerHoneywell

Honeywell IN20817 110 kV FRP Static Discharge Rod High Voltage Electrical Safety Tool

0.0 (0)Rated 0.0 out of 5
SKU: VZ-PPE-FIRE-090
Rs. 275,400

Honeywell IN20817 110 kV FRP Static Discharge Rod. Power: 110KV. Stick Length: 6 Feet. Weight: 4.2 Kg. Material: Fibre-Reinforced Polymer (FRP). Cable Length: 6 Feet, 15 Feet, 25 Feet options. Copper U-hook. Grounding cable with aluminum clamp. IEC 60060-1/2010 (CPRI) certified. Price mentioned per piece.

Available sizes

Length: 6 FeetWeight: 4.2 Kg
1
Quality inspected
Fast nationwide delivery
7-day return request (terms apply)

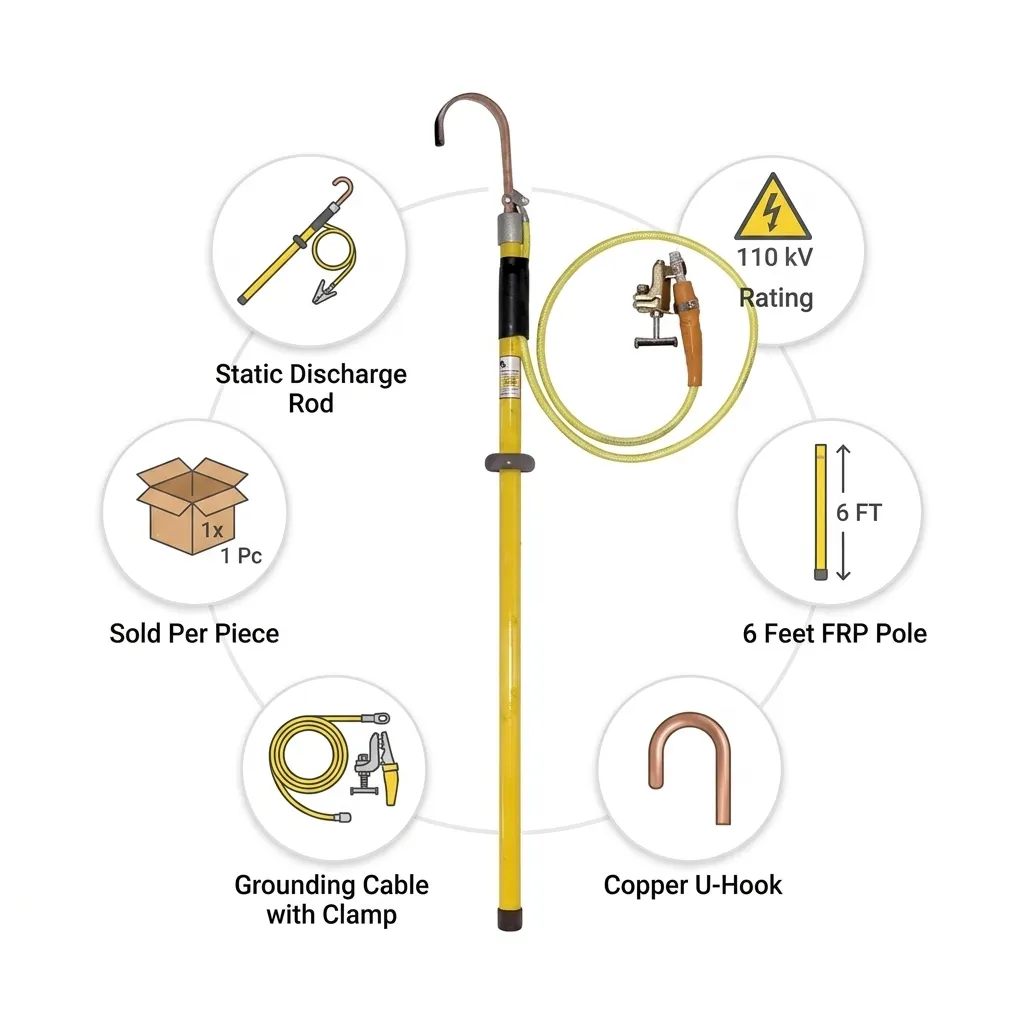

The Honeywell IN20817 Static Discharge Rod is a professional-grade electrical safety tool designed to safely remove residual static or stored electrical charge from high-voltage equipment (up to 110 kV) before maintenance or inspection. Constructed with a foam-filled FRP (fibre-reinforced polymer) insulating stick, a highly conductive copper "U" hook, and a grounded copper cable with clamp, it ensures operator safety during de-energised high-voltage operations. Ideal for use in substations, utility, transmission, and industrial electrical applications . Key Features: Foam-filled FRP stick for superior electrical insulation and mechanical strength; Electrolytically-grade copper "U" hook for efficient discharge path; TPE-coated copper grounding cable with voltage range up to approx. 1,100 V (for cable) while rod is rated for up to 110 kV system discharge; Vinyl-ester resin FRP tube construction tested to IEC 60060-1/2010 (CPRI) 110 kV standard; Available in different cable-length configurations: 6 ft cable standard, optional 15 ft or 25 ft . Industrial Uses & Applications: High Voltage Substations; Utility & Transmission; Industrial Electrical Maintenance; Commercial & Hospitality; Automotive & Vehicle; Education & Laboratories .

Safety Information

Static discharge rod for high-voltage electrical safety. Use only as per manufacturer instructions and local safety codes. Discharge sticks are not grounding tools as described by OSHA 1910.269 and carry no fault duty rating . Inspect before each use for damage or wear. Operate with trained personnel only.

Product Data Sheet

Material
Fibre-Reinforced Polymer (FRP) Pole, Copper Hook, Copper Cable, Aluminum Clamp
Brand
Honeywell
SKU
VZ-PPE-FIRE-090
Model
IN20817
Type
Static Discharge Rod
Power
110KV
Stick Length
6 Feet
Weight
4.2 Kg (Stick)
Brand Sub
IMPACT BY HONEYWELL
Cable Length
6 Feet, 15 Feet, 25 Feet
Material
Fibre-Reinforced Polymer (FRP)
Certifications
IEC 60060-1/2010 (CPRI)
Pricing
Per Piece
Application
High Voltage Substations, Utility & Transmission, Industrial Electrical Maintenance, Commercial & Hospitality, Automotive & Vehicle, Education & Laboratories

Key Features

  • Static Discharge Rod
  • High Voltage Safety Tool
  • Honeywell IN20817
  • 110 kV Rating
  • 6 Feet Stick
  • FRP Material
  • Fibre-Reinforced Polymer
  • Foam-Filled
  • Copper U-Hook
  • Grounding Cable
  • Aluminum Clamp
  • 6 Feet Cable
  • 15 Feet Cable
  • 25 Feet Cable
  • IEC 60060-1/2010
  • CPRI Certified
  • Substations
  • Utility
  • Transmission
  • Industrial Electrical Maintenance
  • Sold Per Piece

Certifications & Compliance

IEC 60060-1/2010 (CPRI)
