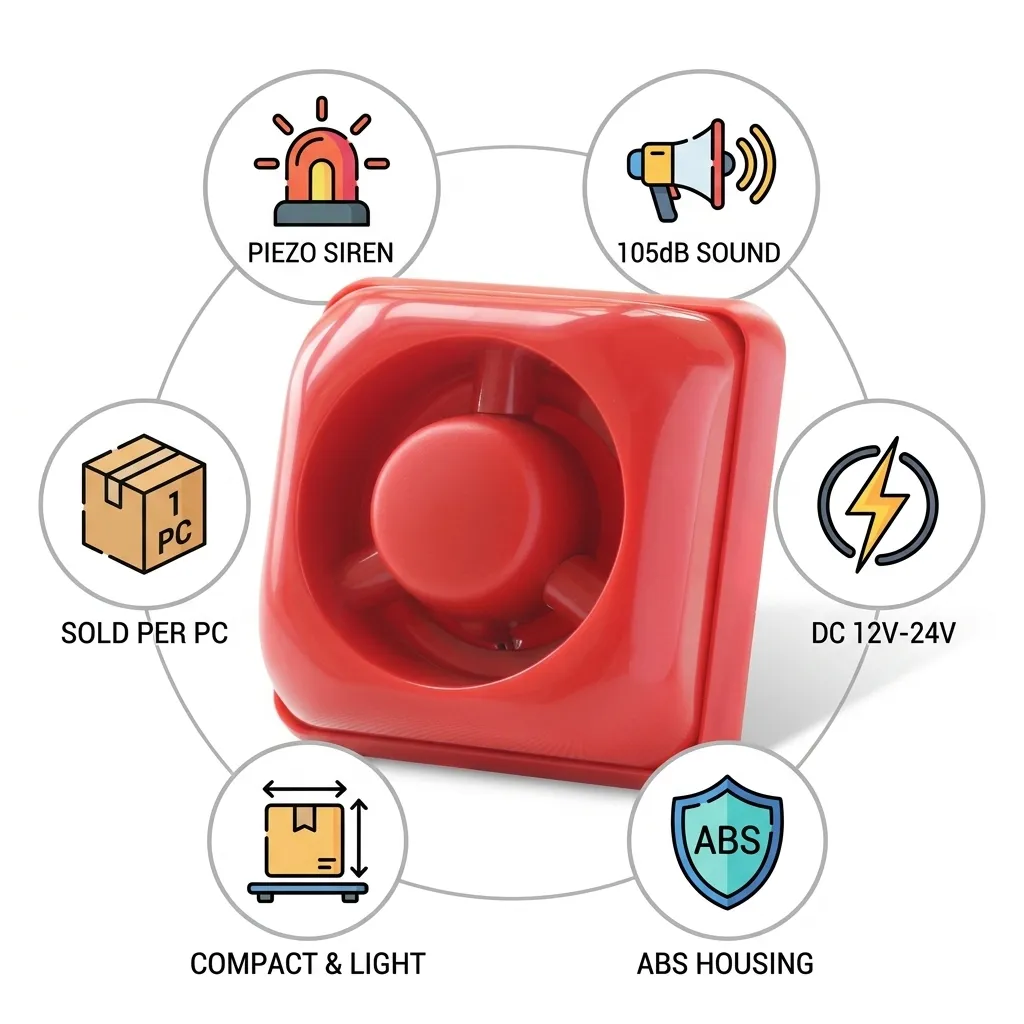

Global Fire SE 804P Piezo Siren 105dB ABS Housing for Security and Fire Applications
Global Fire SE 804P Piezo Siren 105dB ABS Housing for Security and Fire Applications
0.0 (0)Rated 0.0 out of 5
SKU: VZ-PPE-ELEC-056
Rs. 2,500
Global Fire SE 804P Piezo Siren 105dB ABS Housing. Wide voltage compatibility: DC 12V-24V. 105dB ±3dB sound output. Low standby current. Compact and lightweight: 82 x 82 x 33 mm, 81g. ABS housing for durability. Suitable for fire alarm and security systems. Price mentioned per piece.
Available sizes
82 × 82 × 33 mm
Available colors
Red
1
Quality inspected
Fast nationwide delivery
7-day return request (terms apply)
The SE-804P is a high-output piezoelectric siren designed for use with fire alarm systems, intruder alarm panels, and other security/alert systems. It features a loud sound level (≈105 dB) and a compact, lightweight ABS plastic housing, making it suitable for surface-mounted installations in commercial or industrial environments. The product supports DC 12-24 V input and is engineered for straightforward integration.
Key Features: Wide Voltage Compatibility (12–24 V DC) — suitable for both 12 V and 24 V systems for simplified installation across multiple applications; High Sound Output (≈ 105 dB(A) @ 1 m) — loud alert that helps ensure audible notification for occupants in medium-to-large spaces; Low Standby Current Design — keeps loop or panel load minimal, preserving system battery life and reducing wiring cost; Compact and Lightweight (82 × 82 × 33 mm / ~81 g) — easy to mount in tight or retrofit locations without bulky enclosure issues; ABS Housing for Durability — strong plastic casing resists impact and environmental wear, supporting long-term reliability; Temperature Range: –10 °C to +50 °C — reliable operation in typical indoor commercial and light industrial environments; Dual-Use for Fire & Security Systems — can function not only in fire alarm systems but also in intruder / security systems, providing system versatility.
Industrial Uses / Applications: Conventional fire alarm systems in offices, retail, light industrial facilities; Intruder/security alarm systems requiring loud audible alert; Surface-mounted installation in corridors, machine rooms, storage areas; Retrofit projects replacing older horn/sirens where higher SPL and compact footprint are needed; Areas where moderate ambient noise requires a siren with strong output.
Safety Information
Piezo siren for fire and security alarm systems. Inspect before each use for damage. Ensure wiring and mounting are in good condition. Use with correct voltage supply (12-24V DC). Store in a cool, dry place.
Product Data Sheet
Material
ABS Plastic
Brand
Global Fire Equipment
SKU
VZ-PPE-ELEC-056
Model
SE-804P
Type
Piezo Siren
Operating Voltage
DC 12V–24V
Rated Current
≦180mA
Sound Pressure Level
105dB ±3dB
Working Temperature
-10°C ~ 50°C
Material
ABS Plastic
Weight
81g
Size
82 × 82 × 33 mm
Pricing
Per Piece
Application
Conventional Fire Alarm Systems in Offices, Retail, Light Industrial Facilities, Intruder/Security Alarm Systems, Surface-Mounted Installation in Corridors, Machine Rooms, Storage Areas, Retrofit Projects, Areas with Moderate Ambient Noise
