FBS23 Fire Brigade Connection Siamese Breeching Inlet Fire Hydrant System Water Supply Connector 2 way or 4 way
FBS23 Fire Brigade Connection Siamese Breeching Inlet Fire Hydrant System Water Supply Connector 2 way or 4 way
0.0 (0)Rated 0.0 out of 5
SKU: VZ-PPE-FIRE-063
Price on Request

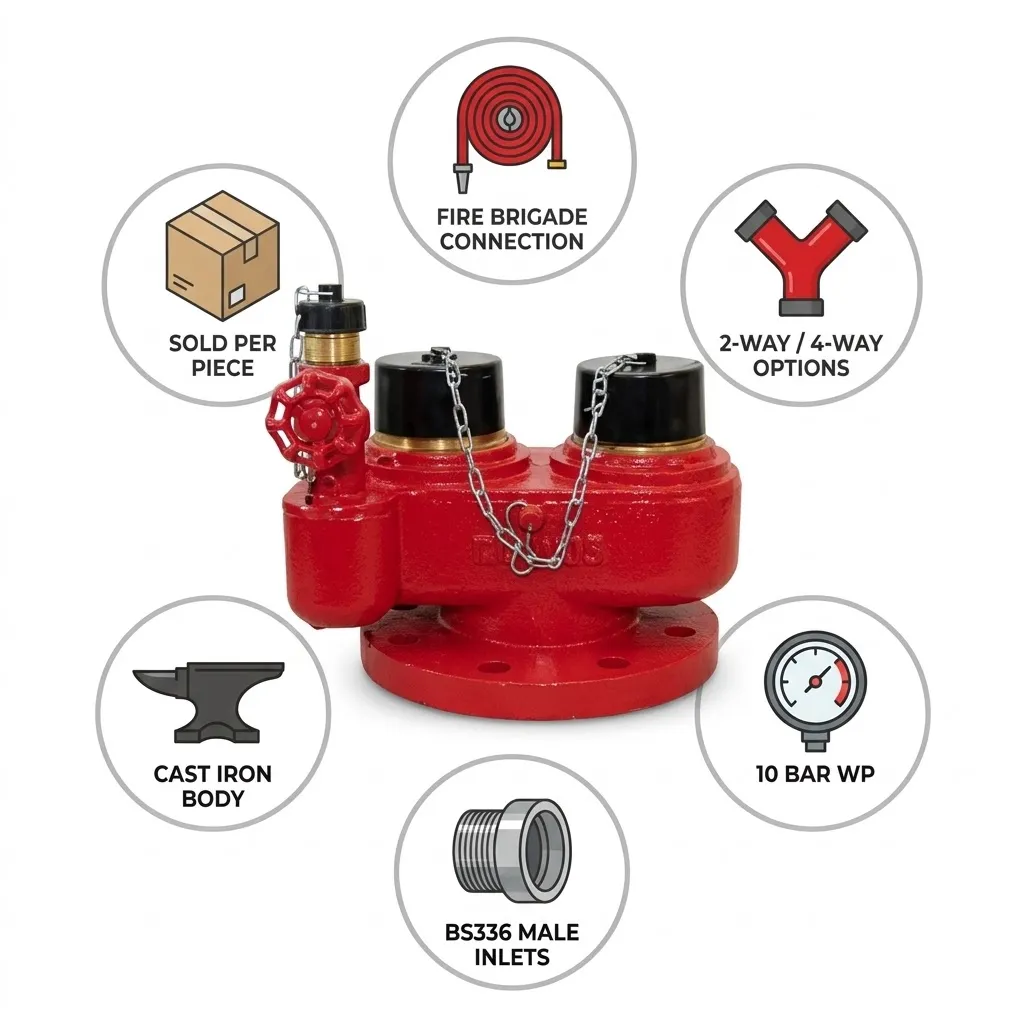

FBS23 Fire Brigade Connection (Siamese Breeching Inlet). Available in 2-Way and 4-Way configurations. Working pressure: 10 Bar. Test pressure: 20 Bar. Inlet: 65 mm BS336 male instantaneous. Outlet: 4" (2-Way) or 6" (4-Way) Table E flange. Cast iron body with copper alloy inlet. Red coated finish. Price mentioned per piece.
Available colors
Red
1
Quality inspected
Fast nationwide delivery
7-day return request (terms apply)
A Fire Brigade Connection (also called a Siamese connection or breeching inlet) is a special fire-hydrant system accessory that lets firefighters quickly hook up external hoses or fire pumps to a building's water supply. It merges multiple hose inputs into a single line that feeds the internal fire protection system, ensuring water delivery during emergency fire response.
Key Features: Available in 2-way or 4-way configurations for different building sizes; BS336 male instantaneous inlet for fast fire brigade hose connection; High working & test pressure ratings for reliable operation under stress; Durable cast iron body with corrosion-resistant finish; Ideal for commercial, industrial, and residential fire protection systems.
Industrial Uses / Applications: Fire brigade hose/pump connection to building fire systems; Water supply for standpipe & sprinkler systems; Use in high-rise buildings, factories, and malls.
Safety Information
Fire brigade connection for building fire protection systems. Install as per manufacturer instructions and local fire safety codes. Inspect regularly for leaks or corrosion. Operate with trained personnel only. Do not exceed the maximum working pressure of 10 Bar.
Product Data Sheet
Material
Cast Iron (Body), Copper Alloy (Inlet)
Brand
Generic
SKU
VZ-PPE-FIRE-063
Model
FBS23
Type
Fire Brigade Connection / Siamese Breeching Inlet
Configuration
2-Way & 4-Way
Working Pressure
10 Bar
Test Pressure
20 Bar
Inlet
65 mm BS336 male instantaneous
Outlet
4" (2-Way) or 6" (4-Way) Table E flange
Material
Cast iron body with copper alloy inlet
Dimensions
316 x 219 x 235 mm (2-Way) / 328 x 280 x 270 mm (4-Way)
Finish
Red coated
Pricing
Per Piece
Application
Fire Brigade Hose/Pump Connection to Building Fire Systems, Water Supply for Standpipe & Sprinkler Systems, High-Rise Buildings, Factories, Malls
