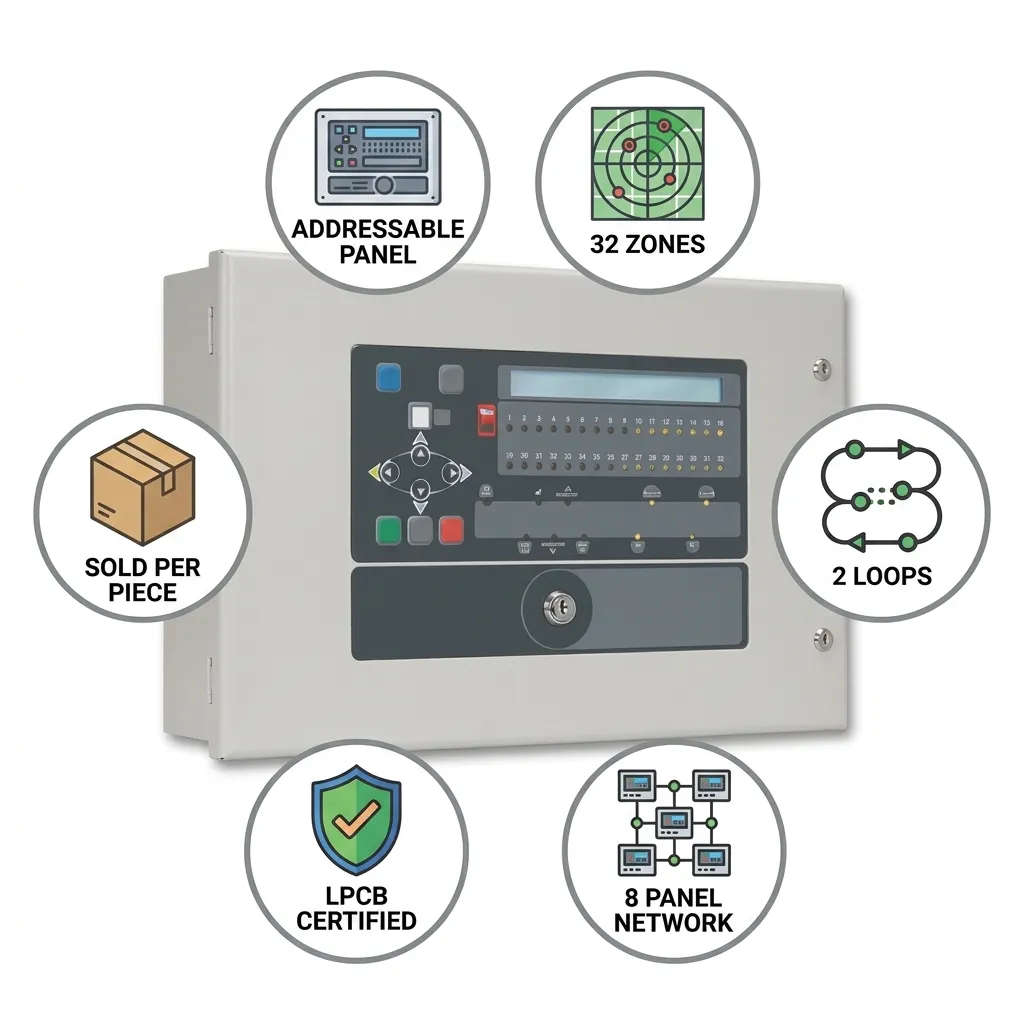

The XFP502 / X / CON series is a networkable, addressable fire alarm control panel with two loops supporting up to 32 zones. It uses either the XP95 / Discovery protocol or C-TEC’s own CAST protocol depending on variant. It is LPCB / EN54-2 / EN54-4 certified (when used with matching options). The panel is housed in a metal enclosure, comes with integrated power supply, control keypad, and diagnostics interface. It supports networking of multiple panels or repeaters via RS-485, and has programmable relays, conventional sounder circuits, inputs, and outputs. Key Features: Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB); Compatibility with Context Plus addressable detectors and devices; Two independently programmable conventional sounder circuits; Two programmable inputs; A fault output relay and three programmable relay outputs with voltage free changeover contacts; A selection of zone dependency/coincidence functions; A day/night (building occupied/unoccupied) function; An investigation delay period function; Phased evacuation facility; An alarm counter that records how many times the panel has been in alarm state; Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop; An integral EN54-4/A2 switch mode power supply; Adjustable contamination levels; Earth fault monitoring; Combined keypad / keyswitch entry to Access Levels 2 and 3; 999 event monitoring; An intuitive Windows based upload-download PC program; Optional flush-mounting bezel and glazed stainless steel enclosure also available; Up to eight XFP main panels (any variant) can be connected onto a two-wire RS485 network. Alternatively, up to eight XFP repeaters can be connected to any non-networked main panel. Industrial Uses / Applications: Commercial buildings, offices, retail complexes; Hotels, hospitals, educational institutions; Medium to large industrial & manufacturing premises; Multi-storey residential blocks; System expansions where multiple panels must interoperate; Any scenario needing scalable and addressable fire detection control.
