Context Plus EP215 Hold Off / Abort Control Button for Extinguishing Systems
0.0 (0)Rated 0.0 out of 5
SKU: VZ-PPE-ELEC-085
Price on Request
Context Plus EP215 Hold Off / Abort Button for Extinguishing Systems. Surface or flush mounting. Connects to EP203/CON automatic extinguisher panel. 35mm black back box, yellow lid, green push button. IP24 rated. Supplied with two branding labels. Price mentioned per piece.
Available sizes
Dimensions(mm): 87 H x 87 W x 58 D mm
Available colors
Yellow (Lid)Green (Button)Black (Back Box)
1
Quality inspected
Fast nationwide delivery
7-day return request (terms apply)

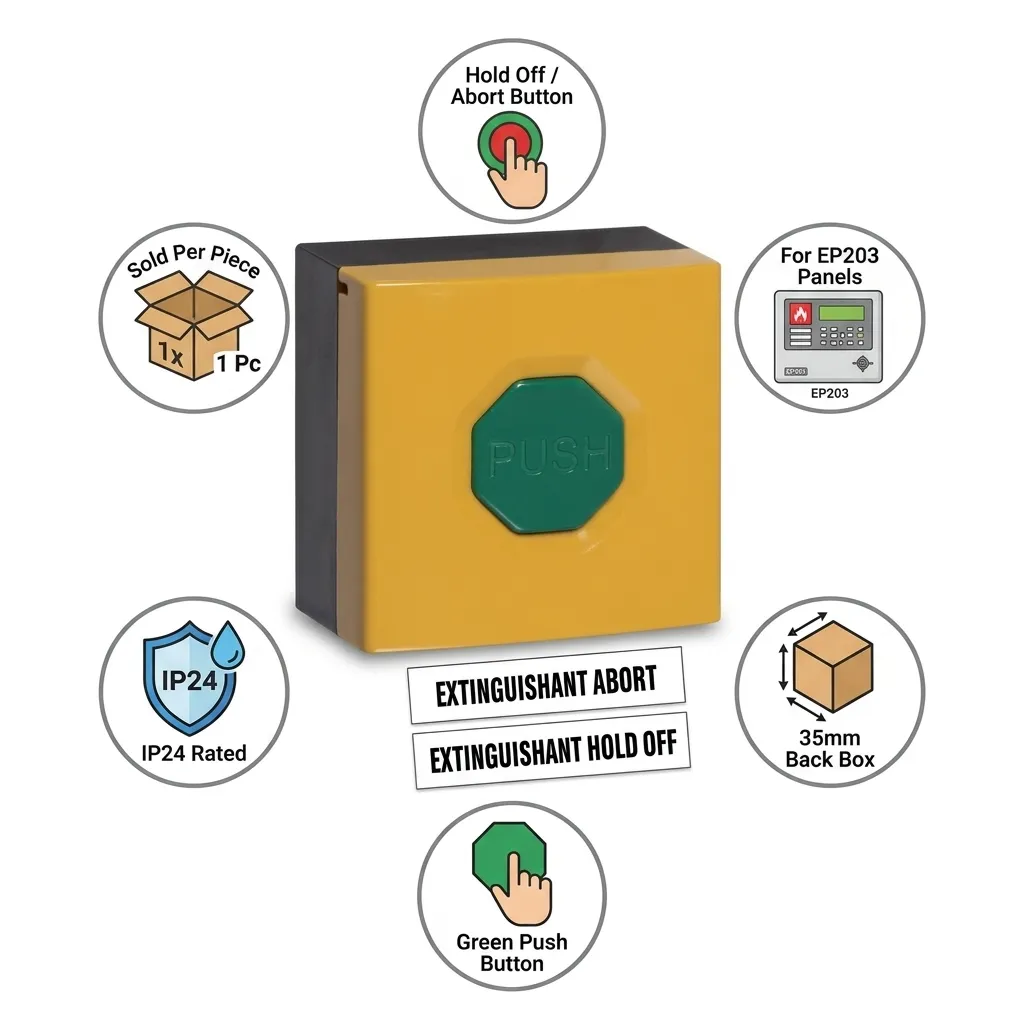

The EP215 is a surface or flush mounting hold or abort button designed to connect to an EP203/CON automatic extinguisher panel to provide a means of delaying or cancelling the extinguishant release sequence . It comprises a 35mm black back box, yellow lid and green push button. The unit is supplied with two branding label options ('Extinguishant Hold Off' and 'Extinguishant Abort'). Actual operation depends on wiring configuration (if hold and abort functions are required, at least two EP215 buttons will be needed). IP24 rated for indoor use .
Key Features: Designed for EP203/CON automatic extinguisher panels; Surface or flush mounting; 35mm black back box; Yellow lid with green push button; Two branding label options included; IP24 rated (indoor use only); Polycarbonate construction; Compact dimensions (87 H x 87 W x 58 D mm).
Industrial Uses / Applications: Protected server rooms / data centres; Archive / record storage / museums; Telecommunications shelters, control rooms; Laboratories / clean rooms; Any environment with an EP203 extinguishant panel installed.
Safety Information
Hold off / abort button for extinguishant systems. Install as per manufacturer instructions and local fire safety codes. Ensure proper wiring to the extinguisher panel. Test the button regularly. Do not open the enclosure while powered.
Product Data Sheet
Material
Polycarbonate (Housing & Button)
Brand
Context Plus
SKU
VZ-PPE-ELEC-085
Model
EP215
Type
Hold Off / Abort Button for Extinguishing Systems
Compatibility
EP203/CON automatic extinguisher panel
Mounting
Surface or flush
Back Box
35mm black
Lid Color
Yellow
Button Color
Green
Labels Included
Extinguishant Hold Off, Extinguishant Abort
IP Rating
IP24 (indoor use only)
Construction
Polycarbonate
Dimensions (H x W x D)
87 x 87 x 58 mm
Operating Temp
-0°C to +65°C
Humidity
Max 95% RH non-condensing
Pricing
Per Piece
Application
Server Rooms / Data Centres, Archive / Record Storage / Museums, Telecommunications Shelters, Control Rooms, Laboratories / Clean Rooms
