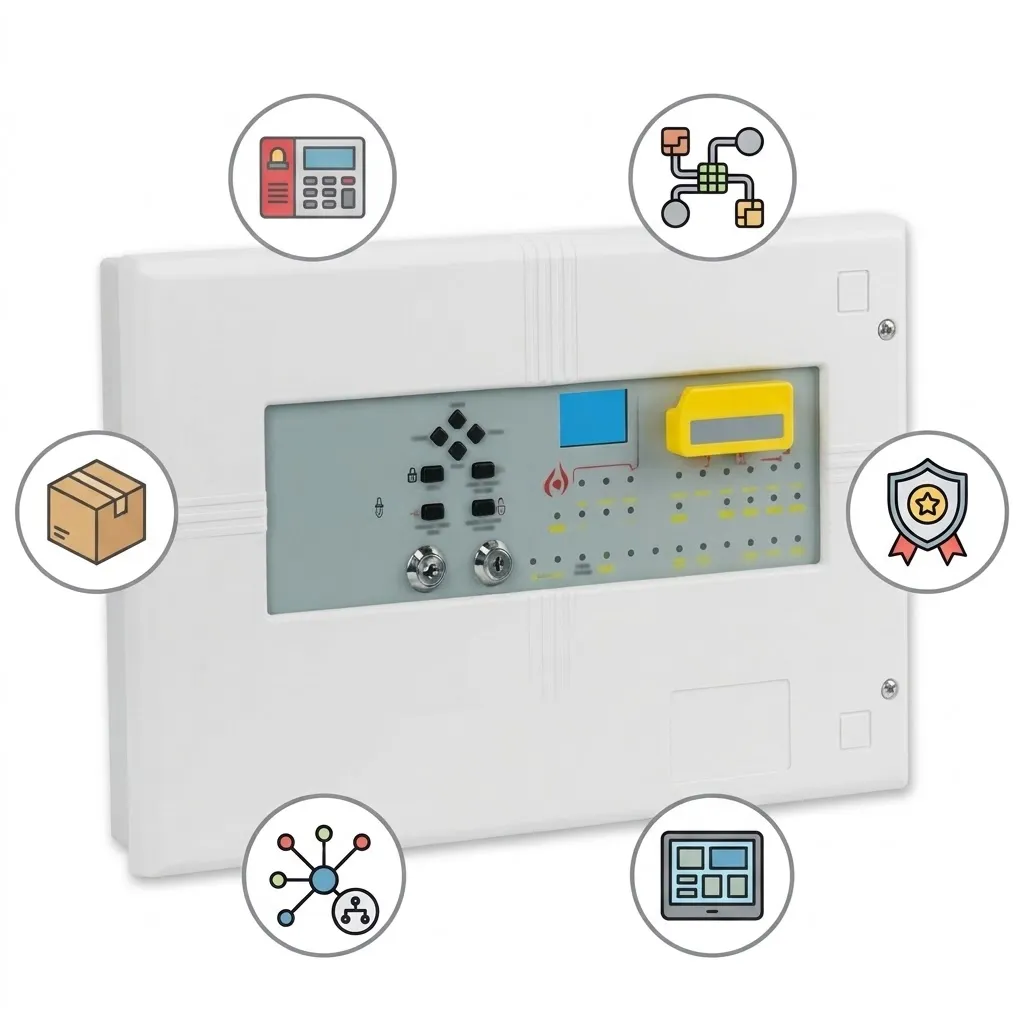

The panel is a 3-zone automatic extinguishant control panel built to BS/EN12094-1 (components for fixed firefighting / gas extinguishing systems) and EN54-2 / EN54-4 (fire alarm panel & power supplies) standards. It is LPCB certified. It’s intended for use in areas requiring gas / clean agent / fire suppressing release systems (e.g., computer rooms, telecommunication centres, archive rooms) where conventional fire alarm panels alone are not sufficient. The panel allows controlled release of extinguishing agent when certain zone(s) trigger and after optional delays, hold/abort, etc. It includes a 128×64 pixel graphical LCD display for clear status and event read-outs. Key Features: Certified to EN54-2/4 and EN12094-1 by the Loss Prevention Certification Board (LPCB); Functions as a standard 3 zone fire panel with additional circuitry for controlling the release of fire-suppressing gas; 128 x 64 pixel display; Any combination of activated zones can be programmed to automatically start the panel’s extinguishant release sequence; Manual release button and two keyswitches; 3 conventional sounder circuits (two x 1st stage, one x 2nd stage); Powerful 3A EN54-4 switch mode PSU; Wide range of monitored inputs and auxiliary outputs; Abort and hold inputs; Time-stamped event log; RS485 connections for up to 8 flush or surface remote status units with their own LCDs, manual release and mode switches. Single gang economy status units also available; Wide range of engineering functions; Optional relay expansion boards and single gang abort & hold buttons; Ideal for use in computer rooms, telecommunication centres, archive storage areas, museums, etc.; System line terminator included. Industrial Uses / Applications: Protected server rooms / data centres; Archive / record storage / museums; Telecommunications shelters, control rooms; Laboratories / clean rooms; Any environment needing integrated fire detection & automatic agent release.
