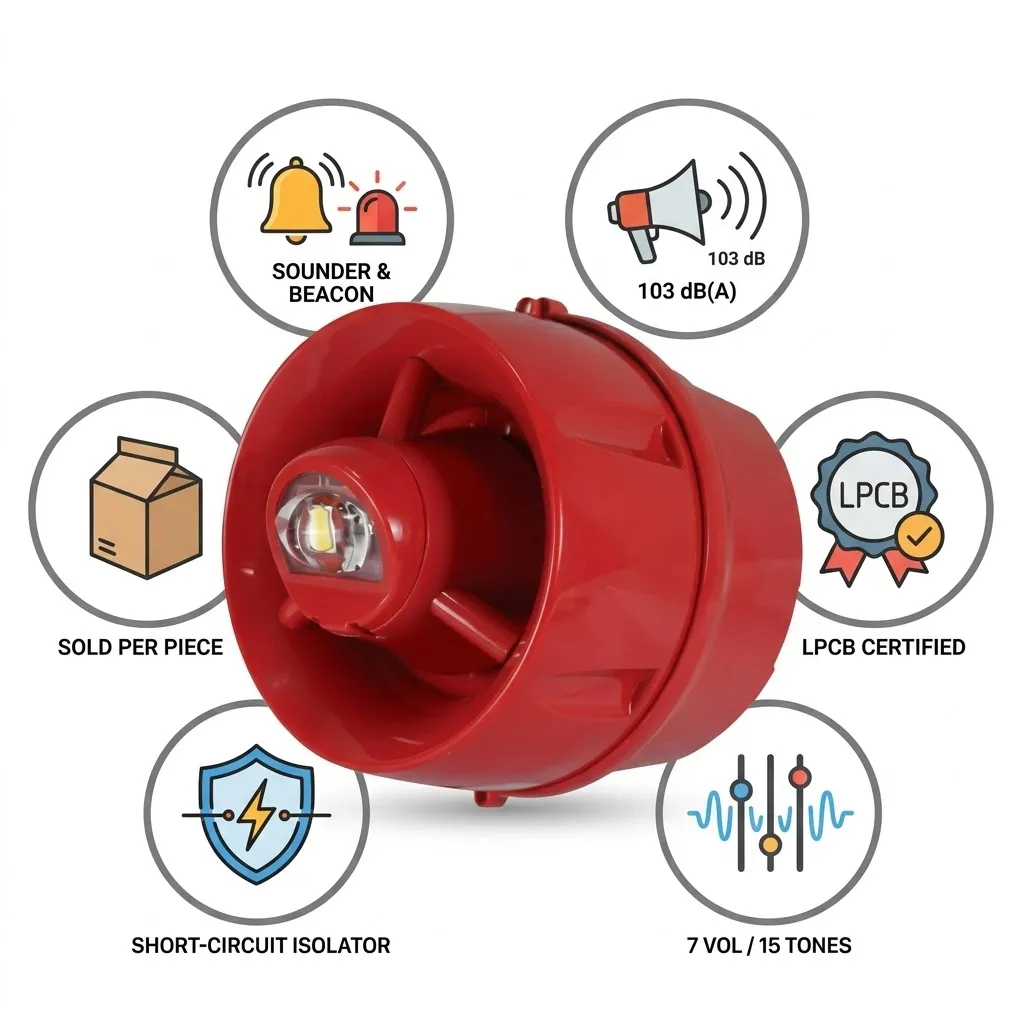

Context Plus CON433A Combined Addressable Sounder and Beacon 103 dB Deep Base
Context Plus CON433A Combined Addressable Sounder and Beacon 103 dB Deep Base
0.0 (0)Rated 0.0 out of 5
SKU: VZ-PPE-ELEC-052
Rs. 27,500
Context Plus CON433A Combined Addressable Sounder and Beacon 103 dB Deep Base. Loop-powered addressable unit with 103 dB(A) sound output. LPCB certified to EN54-3, EN54-23, and EN54-17. Onboard short-circuit isolator. 7 volume settings + 15 tone pairs. Deep base form factor. Price mentioned per piece.
Out of stock
Available colors
Red
1
Quality inspected
Fast nationwide delivery
7-day return request (terms apply)
The CON433A/CX/DR is a loop-powered, addressable combined sounder + visual beacon unit with a deep base, designed for fire alarm systems. It carries LPCB certification and complies with EN54-3 (sounders), EN54-23 (visual alarm devices), and EN54-17 (isolators) when used with the matching base.
When wall-mounted, it provides a "W-2.4-8.2" light distribution — delivering at least 0.4 lux over a 2.4m × 8.2m area. It employs the same lens and electronics used in Context's Hi-Output Sounder VAD series, ensuring high reliability in both audible and visual signalling.
Key Features: Third-party certified (LPCB) to EN54-3, EN54-23, and EN54-17 [citation:2]; 103 dB(A) sound output @ 1 m; Onboard short-circuit loop isolator for protection and fault tolerance; Quiescent current: ≈ 550 µA; Alarm current: ≈ 14 mA @ 24 V DC (sounder + beacon at full); Group addressing / synchronization function — allows multiple units to operate together under one command; 7 selectable volume levels and up to 15 tone pairs for flexible installation tuning; Deep base design for better wiring access and mounting flexibility; Light distribution rated "W-2.4-8.2" (meets minimum 0.4 lux) when wall mounted; IP rating: The IP55 variant (CON433A/CX/DR/65) is available for weatherproof installations [citation:1].
Industrial Uses / Applications: Office buildings, corridors, stairwells; Hotels, schools, hospitals; Retail / commercial premises; Areas requiring both audible and visual alarms; Installations with addressable fire loop systems; Indoor or semi-protected exteriors [citation:2].
Safety Information
Addressable sounder beacon for fire alarm systems. Inspect before each use for damage. Ensure loop wiring and isolator are in good condition. Use with compatible addressable fire alarm systems. Store in a cool, dry place.
Product Data Sheet
Material
Durable Red Housing with Deep Base
Brand
Context Plus
SKU
VZ-PPE-ELEC-052
Model
CON433A
Type
Addressable Combined Sounder and Beacon (Deep Base)
Sound Output
103 dB(A) @ 1 m
Certification
LPCB Certified to EN54-3, EN54-23, EN54-17
Loop Isolator
Onboard Short-Circuit Isolator
Quiescent Current
550 µA
Alarm Current
14 mA @ 24V DC (Sounder + Beacon at Full)
Volume Settings
7 Selectable Levels
Tone Pairs
Up to 15 Selectable Tone Pairs
Light Distribution
W-2.4-8.2 (Min 0.4 Lux over 2.4m x 8.2m)
Base Type
Deep Base
IP Rating
IP33C (Standard), IP55 Variant Available
Pricing
Per Piece
Application
Office Buildings, Corridors, Stairwells, Hotels, Schools, Hospitals, Retail/Commercial Premises, Addressable Fire Loop Systems, Indoor or Semi-Protected Exteriors
