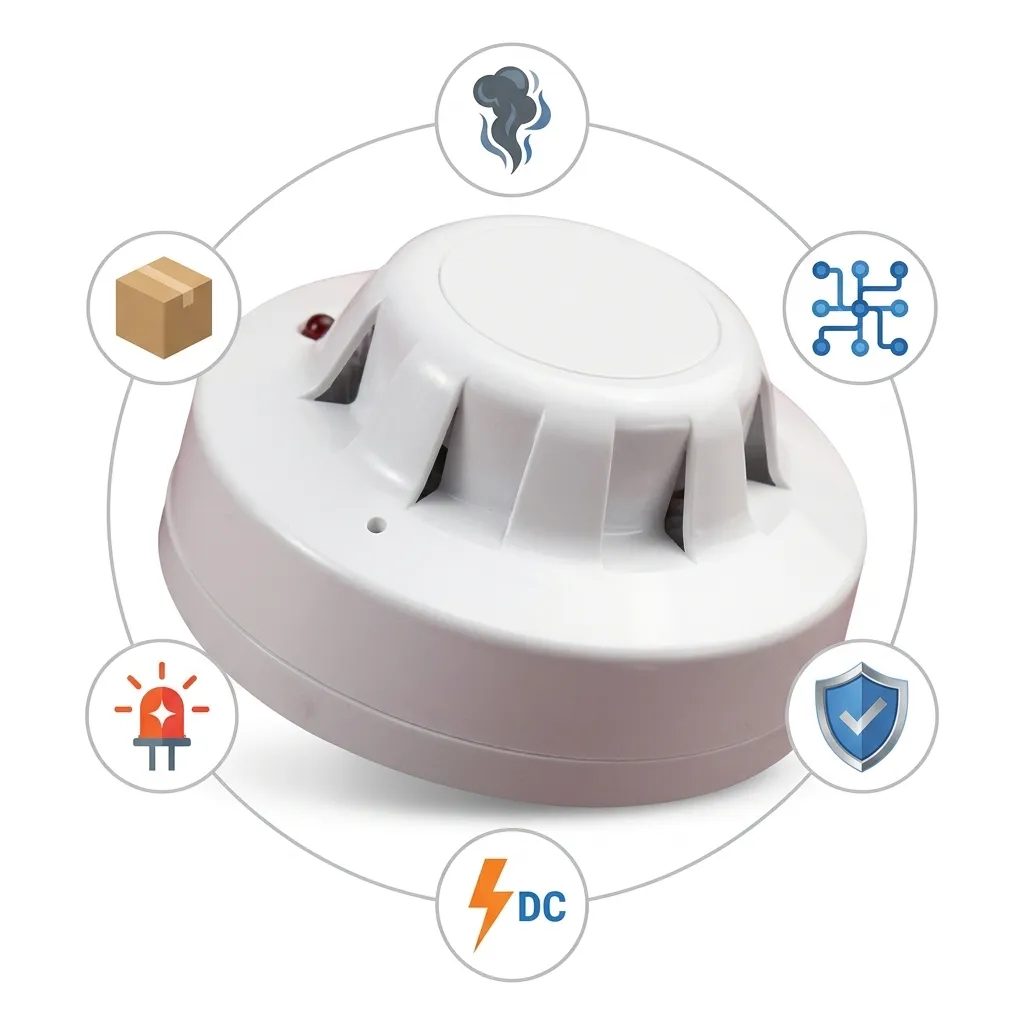

Context Plus 65A Photo Electric UL Listed Optical Smoke Detector with Flashing LED
0.0 (0)Rated 0.0 out of 5
SKU: VZ-PPE-ELEC-092
Rs. 3,500
Context Plus 65A Photo Electric Optical Smoke Detector. UL Listed. Conventional system type. Supply voltage: 9 to 33V DC. Standby current: 45µA at 24V. Alarm current: 52mA at 24V. Flashing LED indicator. Remote output (R-): current sink up to 17mA. Ambient temperature: 0°C to 38°C. Price mentioned per piece.
Available colors
Red
1
Quality inspected
Fast nationwide delivery
7-day return request (terms apply)
The Context Plus Series 65A Photo-Electric Smoke Detector is a UL-Listed conventional optical (photoelectric) smoke detector using light-scatter technology to sense smoke produced by smouldering / slow-burning fires. It features a pulsing LED indicator inside the housing for visual status. Designed to operate over a wide supply voltage range (9-33 V DC), the unit draws very low current in standby, rising significantly in alarm. It is suitable for UL listed conventional fire alarm systems and is designed to work reliably even under varying pressures or airflow, making it well suited for bedrooms, escape routes, and similar critical areas.
Key Features: Low Standby Current: ~45 μA at 24 V (and ~40 μA at 9 V) — reduces power load on panel, suitable for circuits with many detectors; Alarm Current: ~52 mA at 24 V / ~17 mA at 9 V — clear signal during alarm conditions; Flashing LED Status Indicator: Red LED pulses or flashes to show visual confirmation of alarm or status, making monitoring easier; Wide Supply Voltage Range: 9 to 33 V DC — works with many panels, flexible installation; Ambient Operating Temperature: ~32°F to 100°F (0°C to ~38°C) — adequate for many indoor environments; Remote Output: Sink current for remote LED indicator or other remote signalling, up to 17 mA. Useful for remote status display; Robust to Environmental Effects: Designed to be unaffected by wind or atmospheric pressure changes; Note: When using a remote indicator, a current-limiting series resistor may be required.
Industrial Uses / Applications: Residential Buildings; Commercial Buildings; Hospitality Industry; Educational & Institutional Facilities; Public Safety Systems.
Safety Information
Optical smoke detector for conventional fire alarm systems. Install as per manufacturer instructions and local fire safety codes. Test the detector regularly. Clean the sensing chamber as recommended. Do not paint or cover the detector. Replace as per manufacturer guidelines.
Product Data Sheet
Brand
Context Plus
SKU
VZ-PPE-ELEC-092
Model
65A
PartNo
55000-326IMC
Type
Photo Electric Optical Smoke Detector
System Type
Conventional
Certification
UL Listed
Supply Voltage
9 to 33V
Average Stand-by Current at 24V
45µA
Average Stand-by Current at 9V
40µA
Alarm Current at 24V
52mA
Alarm Current at 9V
17mA
Alarm Indication
Clear LED, Red in alarm
Ambient Temperature
32 to 100°F (0°C to 38°C)
Max Wind Continuous
Not affected
Remote Output (R-)
Current sink to -ve line, limited to 17mA
Pricing
Per Piece
Application
Residential Buildings, Commercial Buildings, Hospitality Industry, Educational & Institutional Facilities, Public Safety Systems
Key Features
Optical Smoke Detector
Conventional Smoke Detector
UL Listed
Photo Electric
Flashing LED
9-33V DC Operating Voltage
45µA Standby Current at 24V
40µA Standby Current at 9V
52mA Alarm Current at 24V
17mA Alarm Current at 9V
Remote Output 17mA
0°C to 38°C Ambient Temperature
Wind Unaffected
Residential Buildings
Commercial Buildings
Hospitality Industry
Educational Facilities
Institutional Facilities
Public Safety Systems
Sold Per Piece
Certifications & Compliance
UL Listed
Verified
