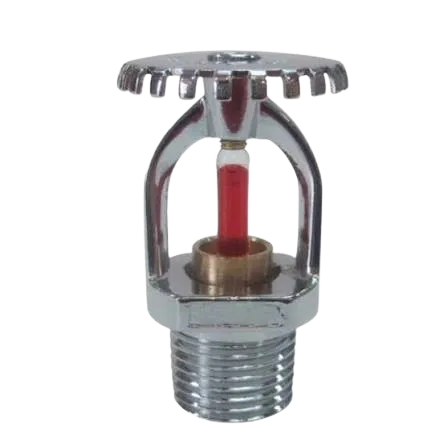

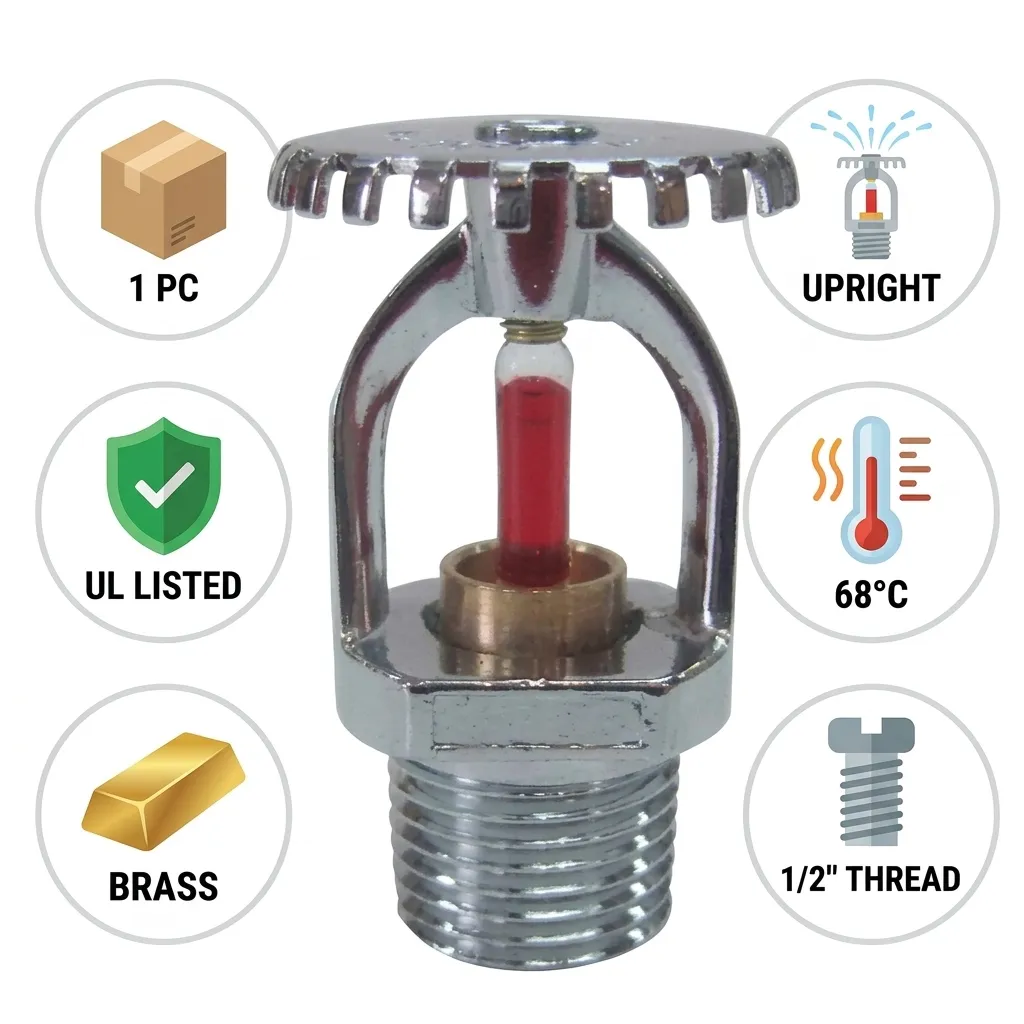

Auto Fire Safety Water Sprinkler Upright. Material: Brass (ASTM B36). Thread size: 1/2" BSPT / NPT. Response type: SR (5mm glass bulb) / QR (3mm glass bulb). Temperature ratings: 68°C (155°F) / 79°C (175°F). Pressure ratings: Max 175 PSI; tested at 500 PSI. UL Listed. Price mentioned per piece.
Available sizes
Thread Size1/2" BSPT / NPT
1
Quality inspected
Fast nationwide delivery
7-day return request (terms apply)
The Auto Fire Safety Water Sprinkler-Upright is an automatic fire suppression device designed to activate and release water when exposed to high temperatures, effectively controlling fires in their early stages. Constructed from durable brass (ASTM B36), it is available in both Standard Response (SR) and Quick Response (QR) types, catering to various fire protection needs. The sprinkler head is UL Listed, ensuring compliance with international safety standards. Its upright design allows for efficient water distribution in areas with exposed piping systems.
Key Features: Brass (ASTM B36) for durability and corrosion resistance; 1/2" BSPT / NPT, compatible with standard fire protection systems; Available in Standard Response (5 mm glass bulb) and Quick Response (3 mm glass bulb) to suit different hazard levels; Options for 68°C (155°F) or 79°C (175°F) activation temperatures; Maximum working pressure of 175 PSI; 100% tested at 500 PSI to ensure reliability; UL Listed, meeting international fire safety standards.
Industrial Uses & Applications: Residential / Home Use; Commercial / Hospitality; Industrial / Manufacturing; Automotive / Vehicle; Education / Laboratories.
Safety Information
Automatic fire sprinkler head for fire protection systems. Install as per manufacturer instructions and local fire safety codes. Do not paint or damage the glass bulb. Replace immediately if the bulb is broken or the sprinkler has been activated. Do not exceed the maximum working pressure of 175 PSI.

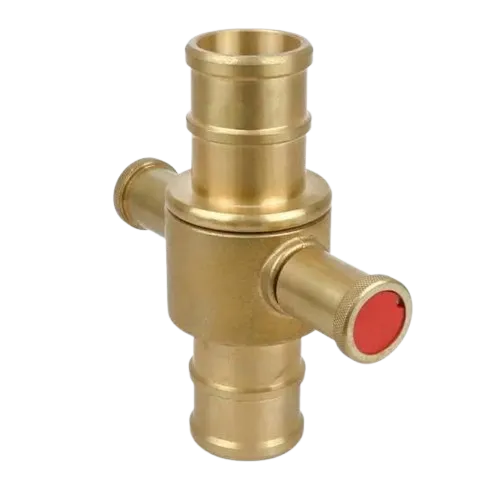

Mughal 1.5" Brass Male Fire Hose Adapter. Brass construction. Male connection type. For Class A & B firefighting. Compatible with GOST, NST, STORZ, John Morris, Machino, French & Nakajima standards. Working pressure: 1.6 MPa. Test pressure: 2.4 MPa. Suitable for water & foam. Price mentioned per piece.
Mughal 2" Brass Male Fire Hose Adapter. Brass construction. Male connection type. For Class A & B firefighting. Compatible with GOST, NST, STORZ, John Morris, Machino, French & Nakajima standards. Working pressure: 1.6 MPa. Test pressure: 2.4 MPa. Suitable for water & foam. Price mentioned per piece.
Mughal 2.5" Brass Male Fire Hose Adapter. Brass construction. Male connection type. For Class A & B firefighting. Compatible with GOST, NST, STORZ, John Morris, Machino, French & Nakajima standards. Working pressure: 1.6 MPa. Test pressure: 2.4 MPa. Suitable for water & foam. Price mentioned per piece.
