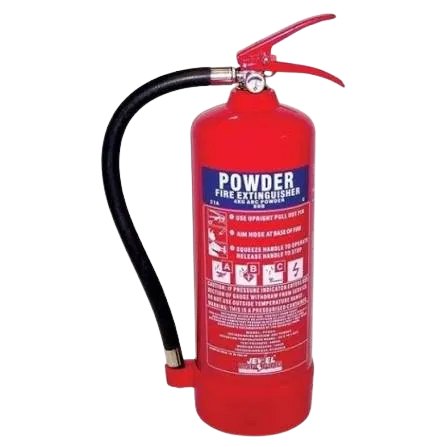

4 KG Dry Chemical Powder Fire Extinguisher. ABC / Mono-ammonium phosphate dry powder for Class A, B, C fires. Steel ST12 cylinder. Working pressure ~12-15 bar, test pressure ~25 bar. Cylinder size approx Ø130-150 mm × 400-480 mm. Gross weight ~5.9-6.3 kg. Temperature range −20°C to +60°C. Discharge time ~10-16 seconds, range ~5-8 meters. Wall mounting bracket included. Price mentioned per piece.
Available sizes
4 KG(Ø130-150 mm × 400-480 mm)
Available colors
Red
1
Quality inspected
Fast nationwide delivery
7-day return request (terms apply)

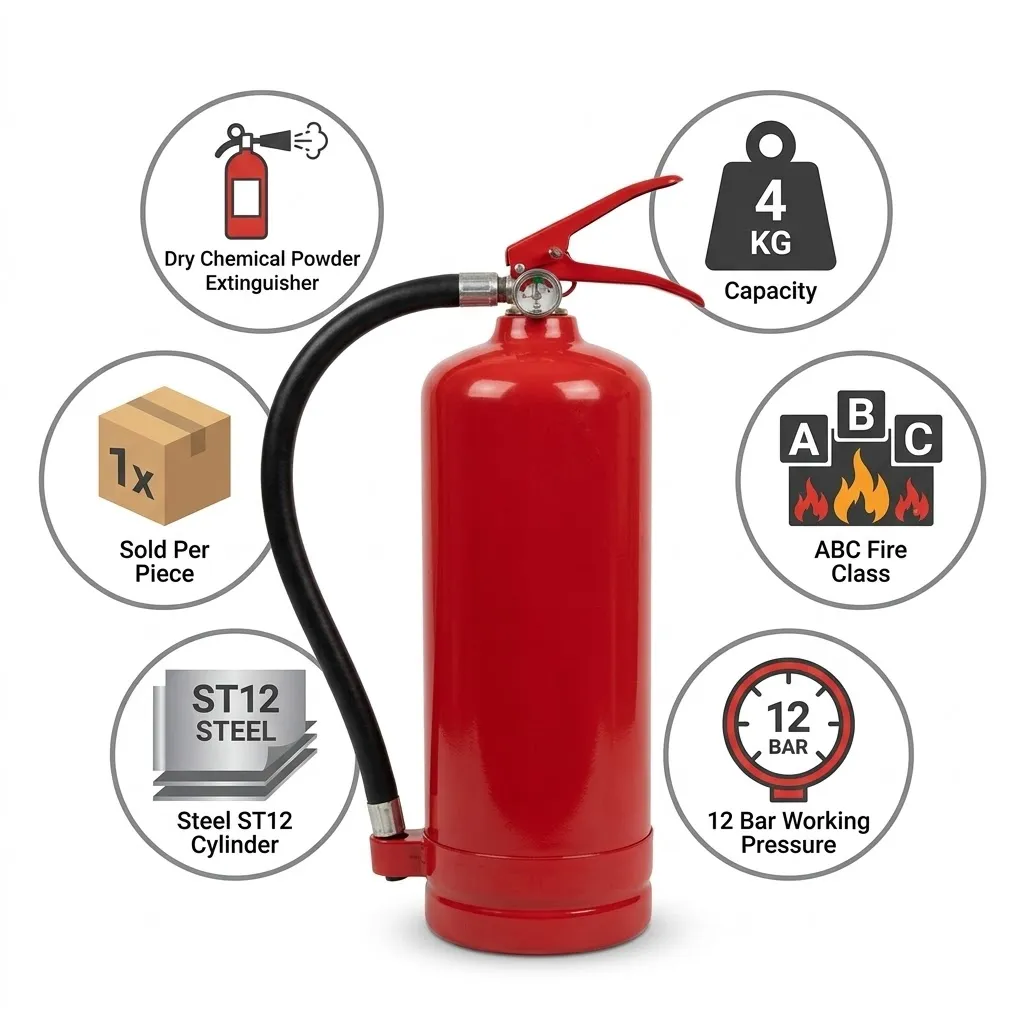

The 4 kg DCP fire extinguisher is a robust multipurpose safety device designed for commercial, industrial, or larger residential settings in Karachi. It uses Dry Chemical Powder (typically ABC / Mono-ammonium phosphate-based) to extinguish Class A (solids), B (flammable liquids), and C (electrical / gas) fires. Housed in a steel cylinder, it includes a pull-pin / lever valve, pressure gauge for status monitoring, hose or nozzle for aiming, and a wall bracket for mounting. Suitable for moderate fire risks, this unit offers longer discharge time and greater throw range than smaller extinguishers.
Key Features: Capacity — 4 kg dry chemical powder agent; Working Pressure — ~12-15 bar under normal conditions; Discharge Time — ~10-16 seconds for full discharge; Discharge Range — typically around 5-8 meters for effective reach; Cylinder Material — Steel; Temperature Range — from approx −20°C up to +60°C or more; Dimensions — Cylinder diameter approx 130-150 mm, height ~400-480 mm depending on model; Gross Weight (full) — ~5.9-6.3 kg depending on materials and accessories (hose, bracket etc.); Accessories — Wall mounting bracket included.
Industrial Uses / Applications: Commercial shops, offices, malls; Workshops, garages with flammable liquids; Light industrial / factory premises; Electrical control rooms / generator rooms; Public buildings, schools, hospitals; Vehicle parking areas and transport hubs.
Safety Information
Dry chemical powder fire extinguisher for fire emergencies. Inspect pressure gauge before each use. Ensure safety pin and seal are intact. Store in a cool, dry place. Replace or refill after use.
Product Data Sheet
Material
Steel ST12
SKU
VZ-PPE-FIRE-004
Model
4 KG DCP Fire Extinguisher
Type
Dry Chemical Powder Fire Extinguisher
Capacity
4 KG
Agent
ABC / Mono-Ammonium Phosphate Dry Powder
Fire Classes
Class A, B, C
Working Pressure
~12-15 Bar
Test Pressure
~25 Bar
Cylinder Material
Steel ST12
Dimensions
Ø130-150 mm × 400-480 mm
Gross Weight
~5.9-6.3 kg
Operating Temperature
~−20°C to +60°C
Discharge Time
~10-16 Seconds
Discharge Range
~5-8 Meters
Accessories
Wall Mounting Bracket Included
Pricing
Per Piece
Application
Commercial Shops, Offices, Malls, Workshops, Garages with Flammable Liquids, Light Industrial / Factory Premises, Electrical Control Rooms / Generator Rooms, Public Buildings, Schools, Hospitals, Vehicle Parking Areas and Transport Hubs
Naffco NP1 1 Kg DCP Dry Chemical Powder Fire Extinguisher. Portable stored-pressure type. Propellant: 95% Nitrogen + 5% Helium. Fire rating: 8A 34B. Working pressure: 14 bar. Max operating pressure: 18.5 bar @ 60°C. Test pressure: 30 bar. Total weight: 2.0 kg. Discharge range: 4-5 m, duration: 7-9 seconds. Operating temperature: -20°C to +60°C. Cylinder material: CRCA Steel. Kitemark/LPCB certified to BS EN3. Price mentioned per piece.
Mobiak 50 Kg Dry Powder Trolley Fire Extinguisher. Trolley-mounted stored-pressure type. Extinguishing agent: ABC 40%. Capacity: 50 KG. Operating temperature: -30°C to +60°C. Max allowable pressure: 18 bar. Test pressure: 28 bar. Cylinder height: 730±5 mm, diameter: 350±3 mm. Cylinder material: HP295. Valve material: HPb59-1 (Nickel Plated). Certified by GTC, IGSU Italy, MED, MIRTEC. Price mentioned per piece.
Mobiak 25 Kg Dry Powder Trolley Fire Extinguisher. Trolley-mounted stored-pressure type. Extinguishing agent: ABC 40%. Capacity: 25 KG. Operating temperature: -30°C to +60°C. Max allowable pressure: 18 bar. Test pressure: 28 bar. Cylinder height: 520±5 mm, diameter: 305±3 mm. Cylinder material: HP295. Valve material: HPb59-1 (Nickel Plated). Certified by CNBOP, GTC, IGSU Italy & MIRTEC. Price mentioned per piece.
Mobiak 12 kg Dry Powder Fire Extinguisher. Portable stored-pressure type. Extinguishing agent: HJ ABC Universal. Fire performance: 55A 233B C. Capacity: 12 KG. Operating temperature: -30°C to +60°C. Max allowed pressure: 17 bar. Test pressure: 30 bar. Cylinder height: 623±2 mm, diameter: 180±1 mm. BSI Kitemark certified. Price mentioned per piece.
